This module is a small device for mobile access that can be installed in the Sirio frequency converter and forms a Wi-Fi access point.

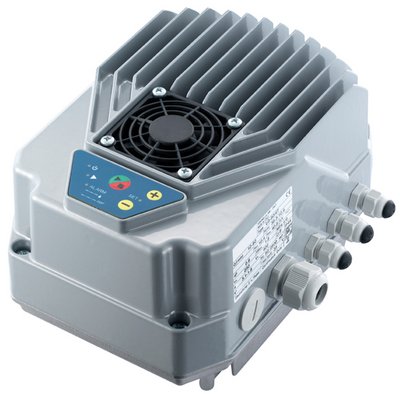

Epic frequency control for electronic speed control and constant pressure maintenance,

For mounting on the terminal box of pump series such as CAMt, INOXt, MPt, MPXt, CABt 150, CABt 200

• Pressure-dependent switch-on and switch-off as well as automatic adjustment of pump output

  to fluctuating working conditions

• Energy savings through speed control

• Dry-run protection, soft start and soft stop

• Overvoltage protection

• Working status display via LEDs

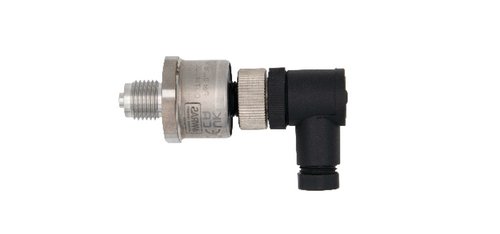

• Includes ¼" pressure sensor

• Cable 1.5 m with plug

• Input voltage: 230 V alternate current

• Suitable for pumps 3 x 230 volts max 7.5 A

go to the product

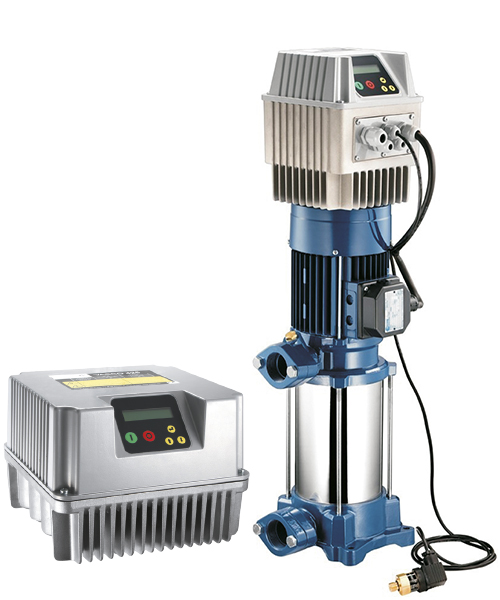

Speed-controlled pump control

Electronic speed control and constant pressure maintenance for electric pumps.
Integrated phase failure, overload and dry-running detection ensures
optimal protection of the water pump.

In the event of a fault, an acoustic signal sounds and the fault message can be forwarded by
potential-free contacts if required.

• Electronic speed control and constant pressure maintenance for electric pumps.

• Pressure-dependent switching on and off of electric pumps.

• Automatic adjustment of pump output to fluctuating operating conditions.

• Energy savings and noise reduction through speed control.

• Protection against overvoltage, undervoltage and phase failure.

• Built-in dry-running protection, soft start and soft stop

• Digital pressure display

• Menu languages: German, English, Italian

• Multi-pump operation possible by coupling several converters

• Diagnostic menu with current and voltage display, as well as error memory with time stamp

• Quick and easy installation on the wall or, in the case of vertical pumps (e.g. Ultra SV),
  directly on the motor fan cover

• The frequency converters are supplied complete with two brackets

• Mounting kit consisting of: 4 brackets for mounting on the fan cover
  of vertical centrifugal pumps and 1 mounting kit for wall mounting

• Installation: with pressure sensor signal 4 - 20 mA (not included in delivery)

• Outputs: 2 x digital and 4 x analogue (4-20 mA)

• Inputs: 2 x digital
