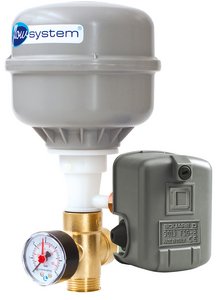

Mechanical pressure control for automatic start and stop of electric pumps.

The pump starts when the start pressure is reached and stops when water flow ends.

The pressure control is installed on 230 V electric centrifugal pumps and replaces a 24 l diaphragm vessel.

Scope of delivery: pressure control and switch, pressure gauge, 4-way tee, cable to the pump, connection cable with plug

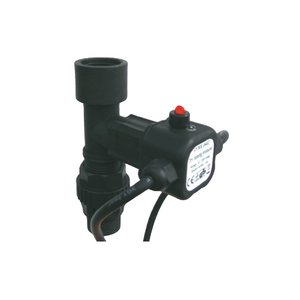

Electronic pressure control unit for switching on and off 230 V centrifugal pumps and submersible pumps.

• Automatic switch-on and switch-off.

• Two operating modes: pressure + flow, pressure + pressure.

• Dry-running protection with automatic switch-off and restart of the pump

• Overvoltage protection

• Digital pressure display, operating status display via LEDs.

• Frost protection: if the temperature falls below 4°C, the pump starts automatically

• Anti-blocking function: the pump starts once a day for 15 seconds to prevent mechanical jamming during prolonged periods of inactivity

• Potential-free output for float switch or alarm/warning light horn

• Working hours counter

• Option to install a capacitor with cable kit at extra cost

• Can be installed horizontal or vertical. Supplied with cable and plug

Two adjustable operating modes:

1. P+F mode (pressure and flow):

    The pump starts when the set switch-on pressure (Pmin) is reached and stops when water extraction ends (flow = 0)

2. P+P mode (pressure and pressure):

    The pump starts at the switch-on pressure (Pmin) and stops when the set switch-off pressure (Pmax) is reached.

    A diaphragm pressure vessel (size according to the system and pump type) must be installed.

go to the procuct

Securbox – electronic pump control with self-learning function for:

• Singlephase submersible pumps with external capacitor

• Three-phase submersible pumps pumps

Easy to install, thanks to self-learning control system

• Protection against under- and overvoltage

• Protection in the event of phase failure (three-phase version)

• Dry-running protection by monitoring the power factor cos ȹ

Connection options:

• Up to 3 float switches for level control of the pump

• Up to 3 immersion probes for level control of the pump

• Sensor 4 - 20 mA (pressure sensor or level sensor)

• Pressure switch for pressure-dependent switching on and off of the pump

• Sensor for detecting water content in the motor oil

• Klixon temperature monitor for monitoring the motor temperature

• Acoustic alarm, warning light

• Outputs: free alarm, 12 volt output, 230 volt output

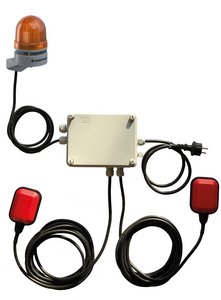

Electrical level control for singlephase submersible pumps equipped with:

• 10 m float switch for automatic switching on and off of the pump for level control

• 10 m float switch for alarm warning light horn for level monitoring

• Warning light horn, thermal protection switch (4 - 10 A)

• Connection cable with Schuko plug

Mini-Box 1: with mounting space for capacitor (capacitor not built into pump)

Mini-Box 2: without mounting space for capacitor (capacitor built into pump)

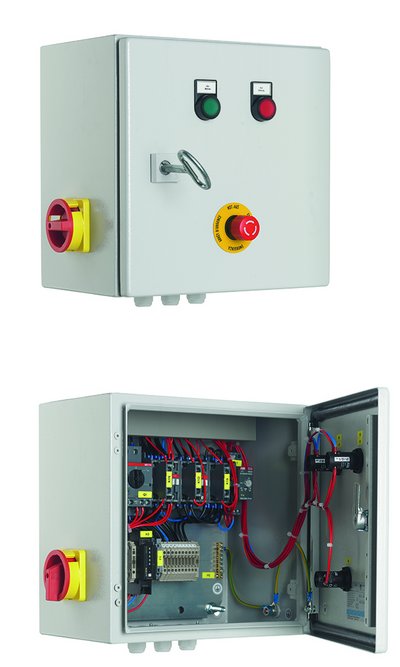

Pump control for star-delta starting for in a wall box.

Fully assembled and wired control box with adjustable time relay from 0.8 to 60 seconds.

For switching from star operation to delta operation. With motor protection switch with thermal and magnetic overload protection.

Technical data:

• Steel box RAL 7035, IP 54

• Voltage: 400/230 Volt

• Supply cable: from below

• Outputs: downwards

• Main switch in the side wall

• Motor protection switch

• Control fuse

• Star-delta switch

• Emergency stop button in the box door

• Illuminated On/Operation button

• Illuminated Off/Fault button

• Optional: Operating hours counter at extra charge

• Optional: Polyester outer box with base at extra charge

Versions:

Version 1: Switching on and off push button in the box

Version 2: Switching on and off push button in the box

                     additional manual-0-automatic switch for automatic mode

                     by float switch, pressure switch or similar.

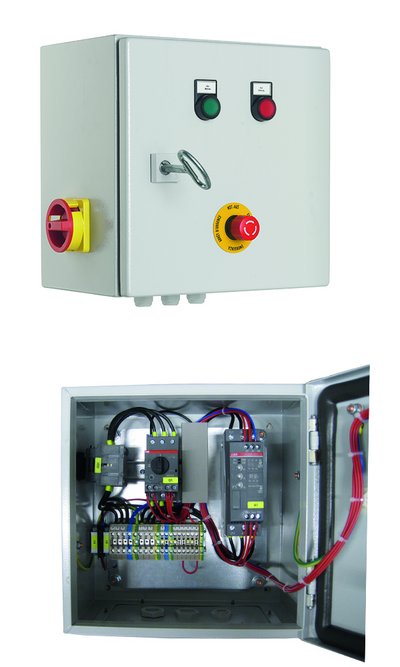

Pump control with soft start mounted in a wall box, for switching a 400 V pump.

The soft start function allows the pump to ramp up smoothly to its rated speed.

The advantages are reduced starting currents and lower mechanical loads. (No star-delta start is necessary!)

With motor protection switch with thermal and magnetic overload release.

Technical data:

• Steel box RAL 7035, IP 54

• Voltage: 400/230 volts

• Supply cable: from below

• Outputs: downwards

• Main switch in the side wall

• Motor protection switch

• ABB PSR soft starter

• Emergency stop button in the control cabinet door

• Illuminated push button, green: start/operation

• Illuminated push button, red: off/fault

Versions:

Version 1: Switching on and off push button in the box

Version 2: Switching on and off push button in the box

                      additional manual/automatic switch for automatic mode

                      with float switch, pressure switch or similar.
