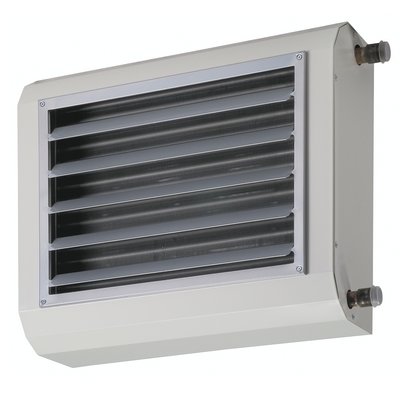

The ATR-EA series air heaters are suitable for centrally controlled heating of warehouses,
production halls, sports halls, etc.
The ATR-EA series comprises 10 models for operation with hot water.

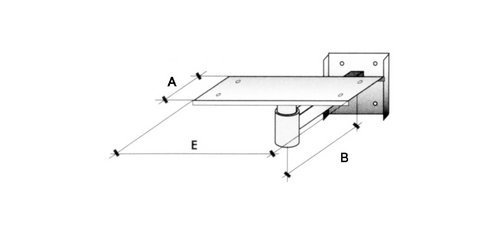

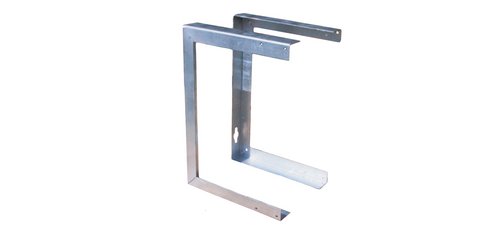

The air heaters can be mounted on the wall with brackets or suspended from the ceiling with chains.

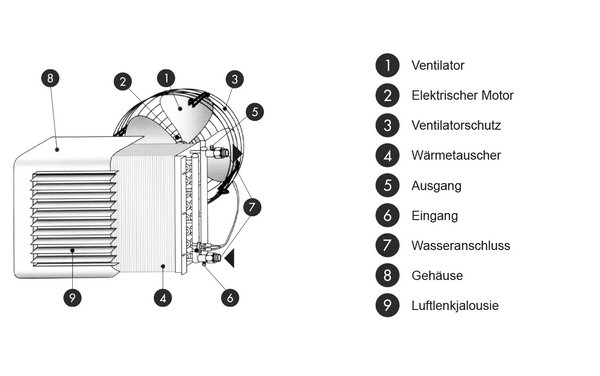

Heat exchanger material: copper/aluminium
Casing: painted sheet steel RAL 9002
Spiral fan made of aluminium, directly meshed with the motor shaft
Adjustable air deflector
The air heaters ensure high efficiency with low power consumption and
low noise levels.
The ATR-EA air heaters comply with the provisions of the CEE standard 73/23, 89/392, 91/368,
93/44, 93/68 und 89/33.
| Type | ATR 10-EA | ATR 20-EA | ATR 30-EA | ATR 40-EA | ATR 50-EA | ATR 60-EA | ATR 70-EA | ATR 80-EA | ATR 90-EA | ATR 100-EA |
|---|---|---|---|---|---|---|---|---|---|---|
| Heat output W | 16.330 | 20.880 | 26.650 | 33.760 | 41.380 | 48.630 | 54.950 | 70.220 | 85.940 | 106.410 |
| Water flow l/h | 1.404 | 1.795 | 2.292 | 2.903 | 3.558 | 4.182 | 4.726 | 6.039 | 7.391 | 9.151 |
| Number of fans | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Motor V | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 |
| Motor W | 90 | 95 | 140 | 150 | 115 | 120 | 2 x 140 | 2 x 150 | 2 x 115 | 2 x 120 |

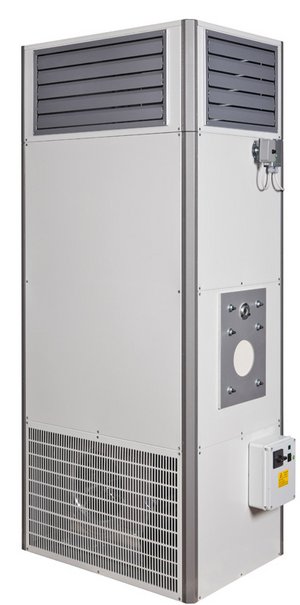

The systems provides instant heat without long preheating times and are suitable for all types of halls
such as production halls, workshops, greenhouses, etc.
The stationary air heaters can be operated with oil or gas burners.
For indoor use only.
Combustion chamber: stainless steel, extremely heat-resistant
Heat exchanger: made of high-quality steel
Casing: sheet steel, powder-coated in white RAL 9002 and insulated
The stand air heaters have a safety thermostat with manual reset
as well as switch box with motor protection switch, indicator lights, summer/winter switch.
An attachment with air outlets and movable air deflectors is available at an additional cost
available.
(illustration with top panel)
