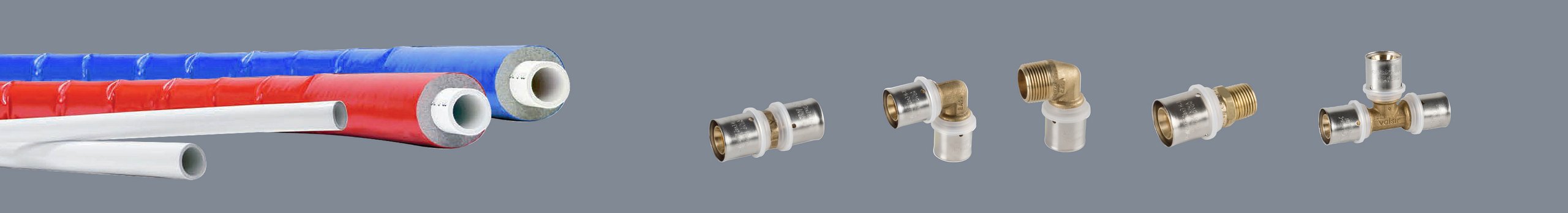

Multi-layer composite pipe for heating and sanitary installations
resistant to corrosion, building materials and many chemicals
extremely slick inner surfaces counteract limescale deposits.
outstanding flexibility when bending and long-term dimensional stability
can be bent by hand without tools
Connections must be made with screw or press fittings
DIN-DVGW tested and approved for drinking water pipes
Insulation complies with fire rating EN 12501-1
Insulation thermal conductivity (ISO 8497) up to 40°C = 0.0374 W/mk
max. operating temperature 95°C
max. operating pressure 10 bar
Suitable for hot and cold water distribution systems, heating systems and also industrial systems.
Fittings are equipped with a stop ring made of transparent polymer material, which insulates the aluminium and brass of the fitting, increases the insertion length at the tip and allows for better control.
Multipress moulded profile for contours H, TH, U, C, VAL
Double O-ring for maximum hydraulic sealing
made from a special corrosion-resistant brass alloy
Sleeve made of AISI 304 stainless steel with inspection opening
Possibility of using the product in plumbing, heating and cooling installations
Special PTFE ring to prevent galvanic corrosion between pipe and fitting
Leak detection: unpressed leak (at pressures between 0.5 and 2 bar)
max. operating temperature: 80°C
max. operating pressure: 10 bar
