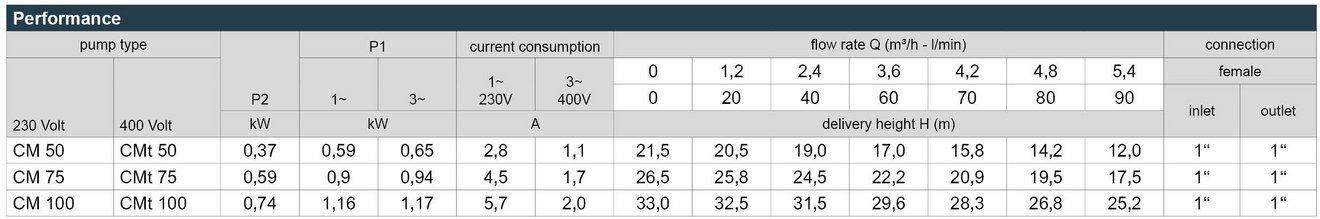

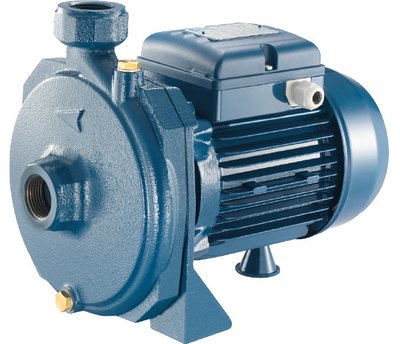

Cast iron centrifugal pump

• Normal priming centrifugal pump

• Pump body: cast iron

• Flange: cast iron

• Impeller: brass

• Mechanical seal: carbon-ceramic-NBR

• Max. water temperature: 0…+90°C

• Connection: 1"

• Motor:

  Alternating current: 1~ 230 V - 50 Hz (with thermal protection)

  Three-phase current: 3~ 230 V Δ/400 V Y - 50 Hz

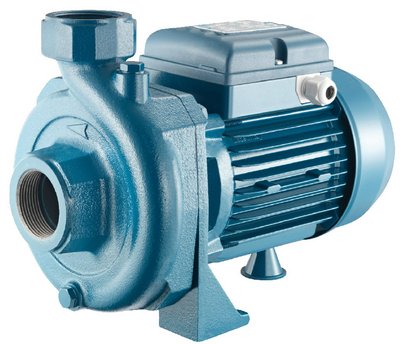

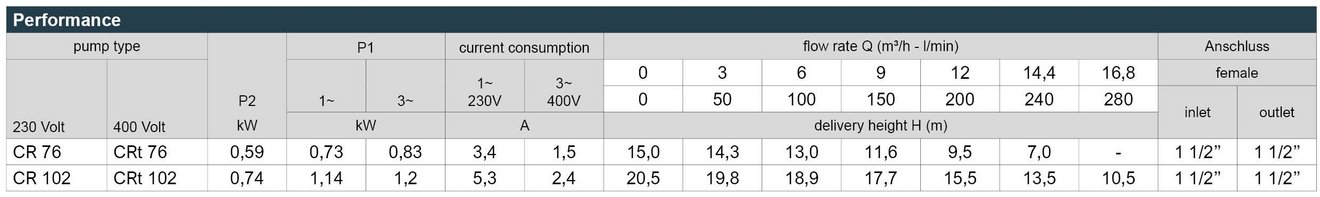

Cast iron centrifugal pump with open impeller

• Normal priming cast iron centrifugal pump with open impeller

• Pump body: cast iron

• Flange: cast iron

• Impeller: brass

• Max. free passage: 10 mm

• Mechancial seal: carbon-ceramic-NBR

• Max. water temperature: 0…+90°C

• Connection: 1 1/2"

• Motor:

  Alternating current: 1~ 230 V - 50 Hz (with thermal protection)

  Three-phase current: 3~ 230 V Δ/400 V Y - 50 Hz

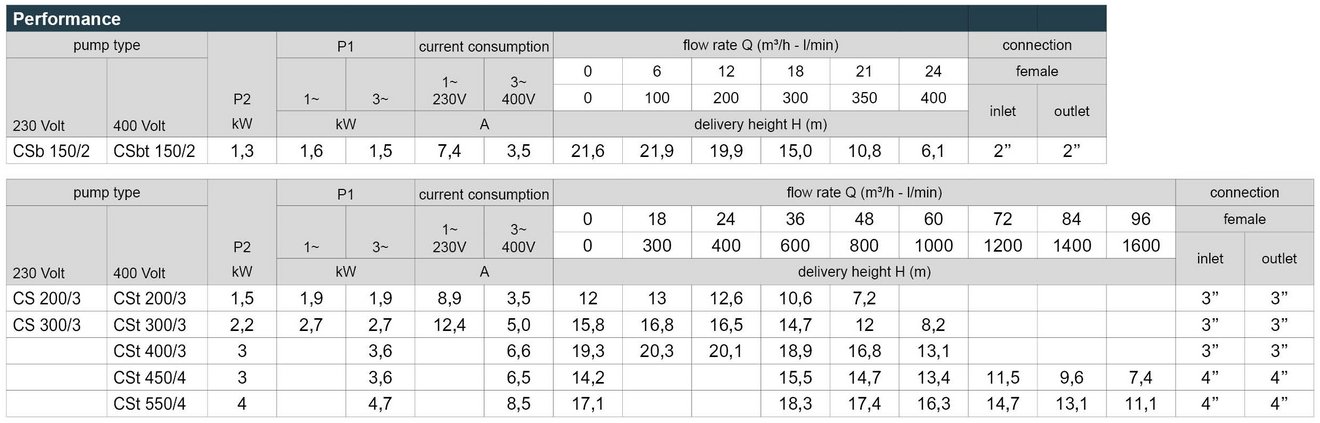

Cast iron centrifugal pump

high flow rate - low pressure

• Normal priming centrifugal pump

• Pump body: cast iron

• Flange: cast iron

• Impeller: cast iron, CSb 150/2 brass

• Mechanical seal: carbon-ceramic-NBR

• Max. water temperature: 0…+90°C

• Motor:

  Alternating current: 1~ 230 V - 50 Hz (with thermal protection)

  Three-phase current: 3~ 230 V Δ/400 V Y - 50 Hz

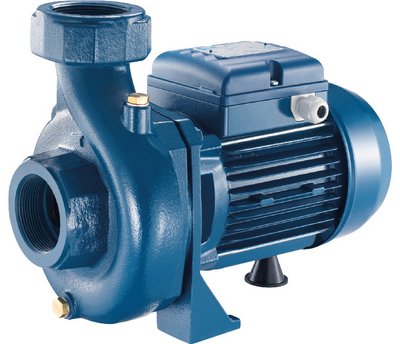

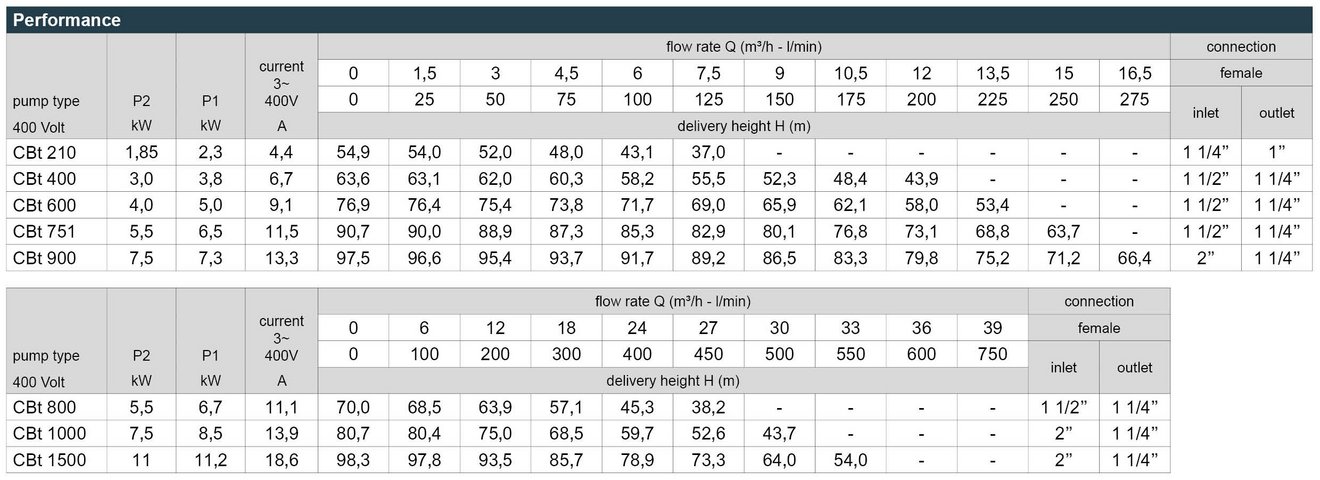

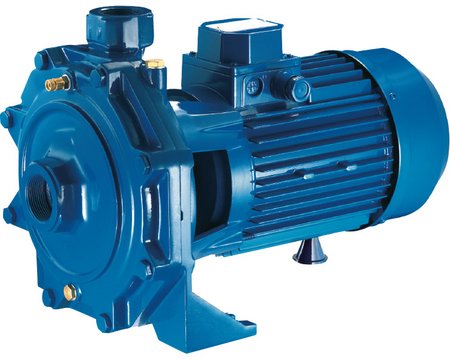

Cast iron centrifugal pump

• Normal priming centrifugal pump

• Pump body: cast iron

• Flange: cast iron

• 2 impellers: brass

• Mechanical seal: carbon-ceramic-NBR

• Max. water temperature: 0…+90°C

• Motor three-phase current:

  up to 3,0 kW: 3~ 230 V Δ/400 V Y - 50 Hz

  from 4,0 kW: 3~ 400 V Δ/690 V Y - 50 Hz
