Peripheral pumps normal priming

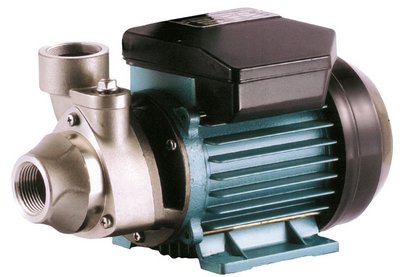

16_PGA_Pumpe

GPA

Stainless steel centrifugal pump

  • Normal priming centrifugal pump

  • Pump body: stainless steel AISI 304

  • Impeller: stainless steel AISI 304

  • Mechanical seal: carbon-ceramic-NBR

  • Max. suction height: 6 m

  • Max. water temperature: 0…+55°C

  • Connection: 1"

  • Motor: alternating current: 1~ 230 V - 50 Hz (with thermal protection)

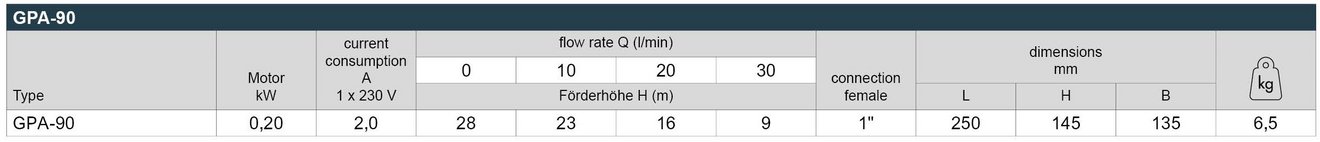

16_GPA_Leistungstabelle_Webseite_EN

 go to the pump series GPA

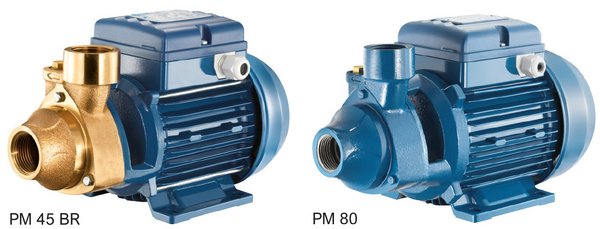

PM

03_PM_Pumpe

Cast iron centrifugal pump

  • Normal priming centrifugal pump

  • Pump body: PM 45 BR: brass  PM 80: cast iron

  • Impeller: brass

  • Mechanical seal: carbon-ceramic-NBR

  • Max. water temperature: 0…+90°C

  • Connection: 1"

  • Motor:

    Alternating current: 1~ 230 V - 50 Hz (with thermal protection)

    Three-phase current: 3~ 230 V Δ/400 V Y - 50 Hz

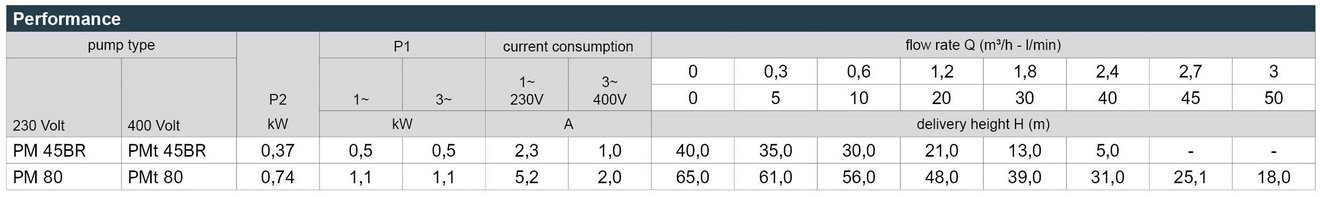

03_PM_Leistungstabelle_Webseite_EN

 go to the pump series PM

16_CP_Pumpe

CP

Cast iron centrifugal pump

  • Normal priming centrifugal pump

  • Pump body: cast iron

  • Impeller: brass

  • Mechanical seal: carbon-ceramic-NBR

  • Max. water temperature: 0…+90°C

  • Connection: 1"

  • Motor:

    Alternating current: 1~ 230 V - 50 Hz (with thermal protection)

    Three-phase current: 3~ 230 V Δ/400 V Y - 50 Hz

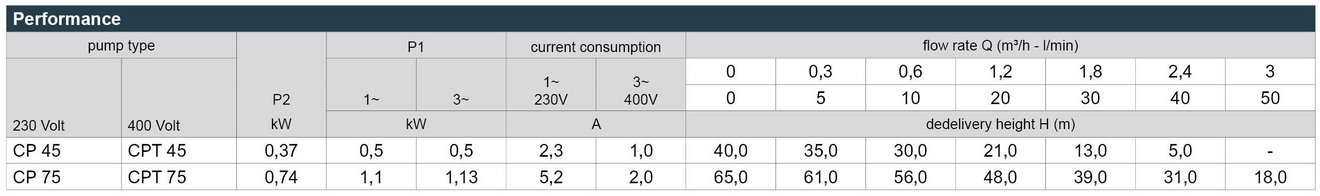

16_CP_Leistungstabelle_Webseite_EN

 go to the pump series CP

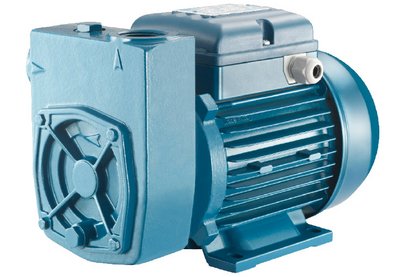

16_MD_Pumpe

MD

Cast iron centrifugal pump

  • Normal priming displacement pump with star impeller

  • Pump body: cast iron

  • Flange: cast iron

  • Impeller: brass

  • Mechanical seal: carbon-ceramic-NBR

  • Max. water temperature: 0…+90°C

  • Connection: 1"

  • Motor:

    Alternating current: 1~ 230 V - 50 Hz (with thermal protection)

    Three-phase current: 3~ 230 V Δ/400 V Y - 50 Hz

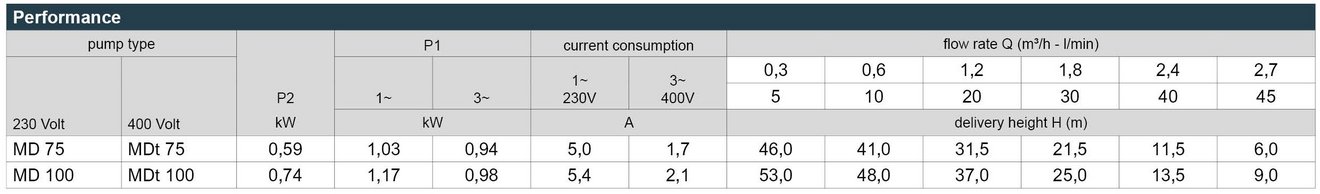

16_MD_Leistungstabelle_Webseite_EN

 go to the pumps series MD
