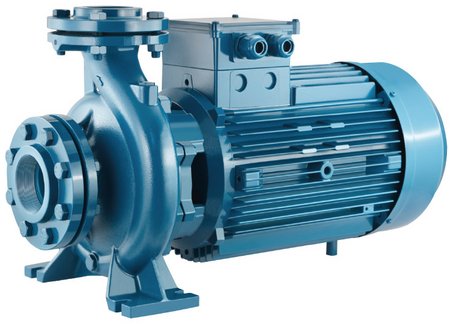

Cast iron standard centrifugal pump

• Normal priming standard centrifugal pump according to EN 733 with axial suction and radial pressure connections

• Pump body: cast iron

• Impeller: cast iron

  stainless steel available as a special order

• Mechanical seal: carbon-ceramic-NBR

• Max. water temperature: -10°…+90°C

• Motor three-phase current:

  up to 4,0 kW: 3~ 230 VΔ/400 VY - 50 Hz

  from 5,5 kW: 3~ 400 VΔ/690 VY - 50 Hz

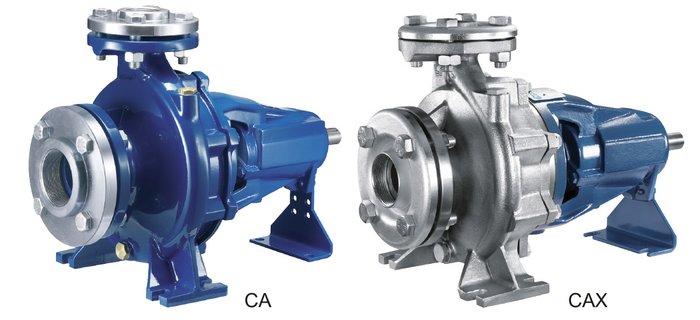

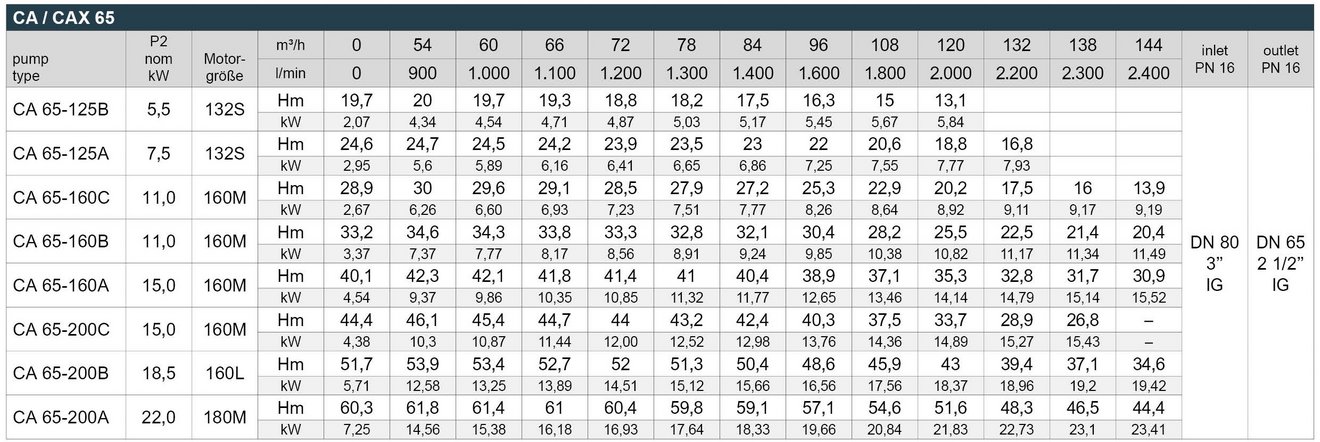

Standard centrifugal pump

with free shaft end

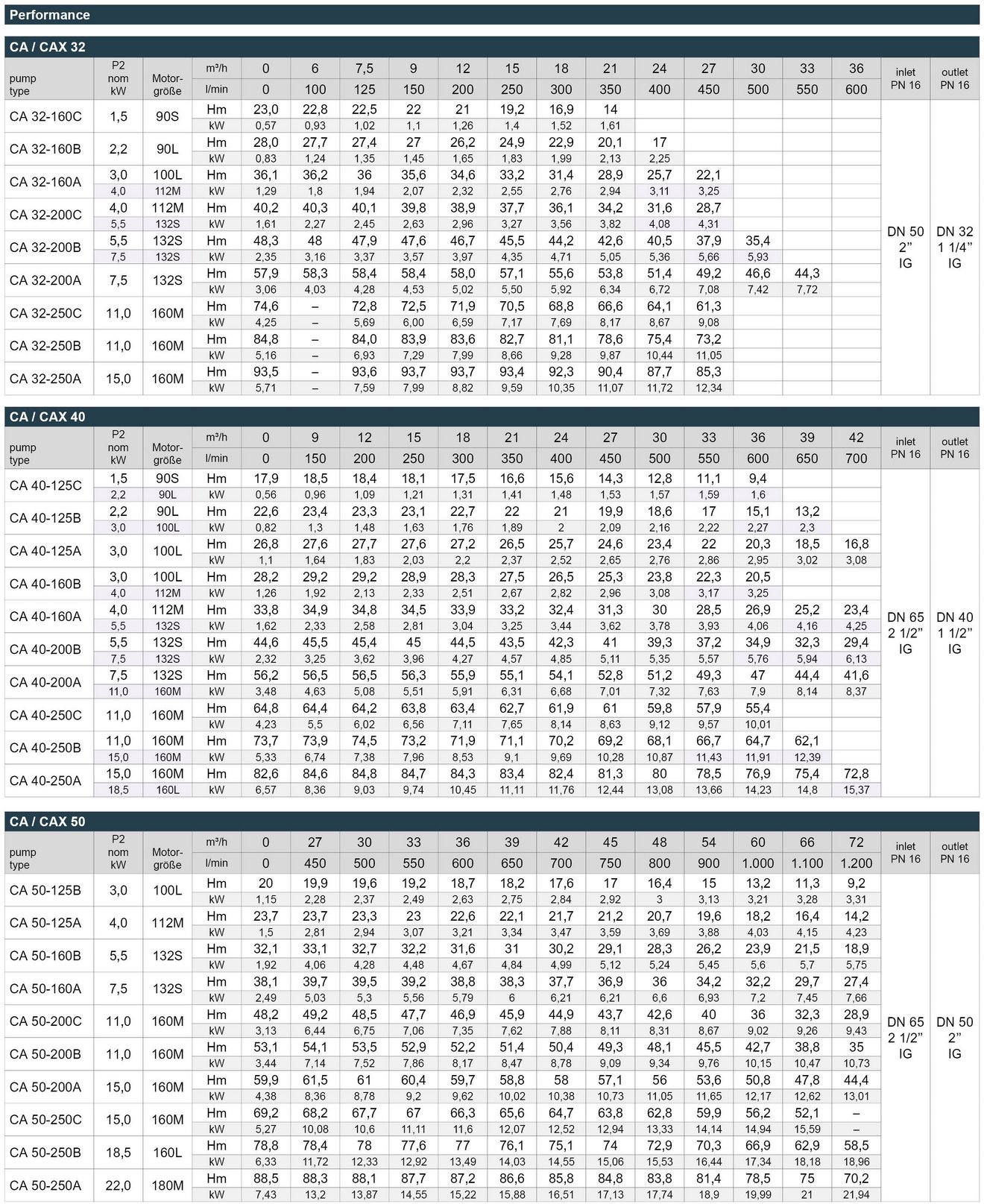

CA   - cast iron

CAX - stainless steel

• Normal priming standard centrifugal pump according to EN 733 with axial suction and radial pressure connections

• Pump body: CA - cast iron / CAX - stainless steel AISI 316

• Impeller: CA - cast iron / CAX - stainless steel AISI 316

• Flange: CA - DIN 2566 galvanised / CAX - DIN 2566 stainless steel

• Mechanical seal: carbon-ceramic-NBR

• Max. water temperature: -10°…+90°C

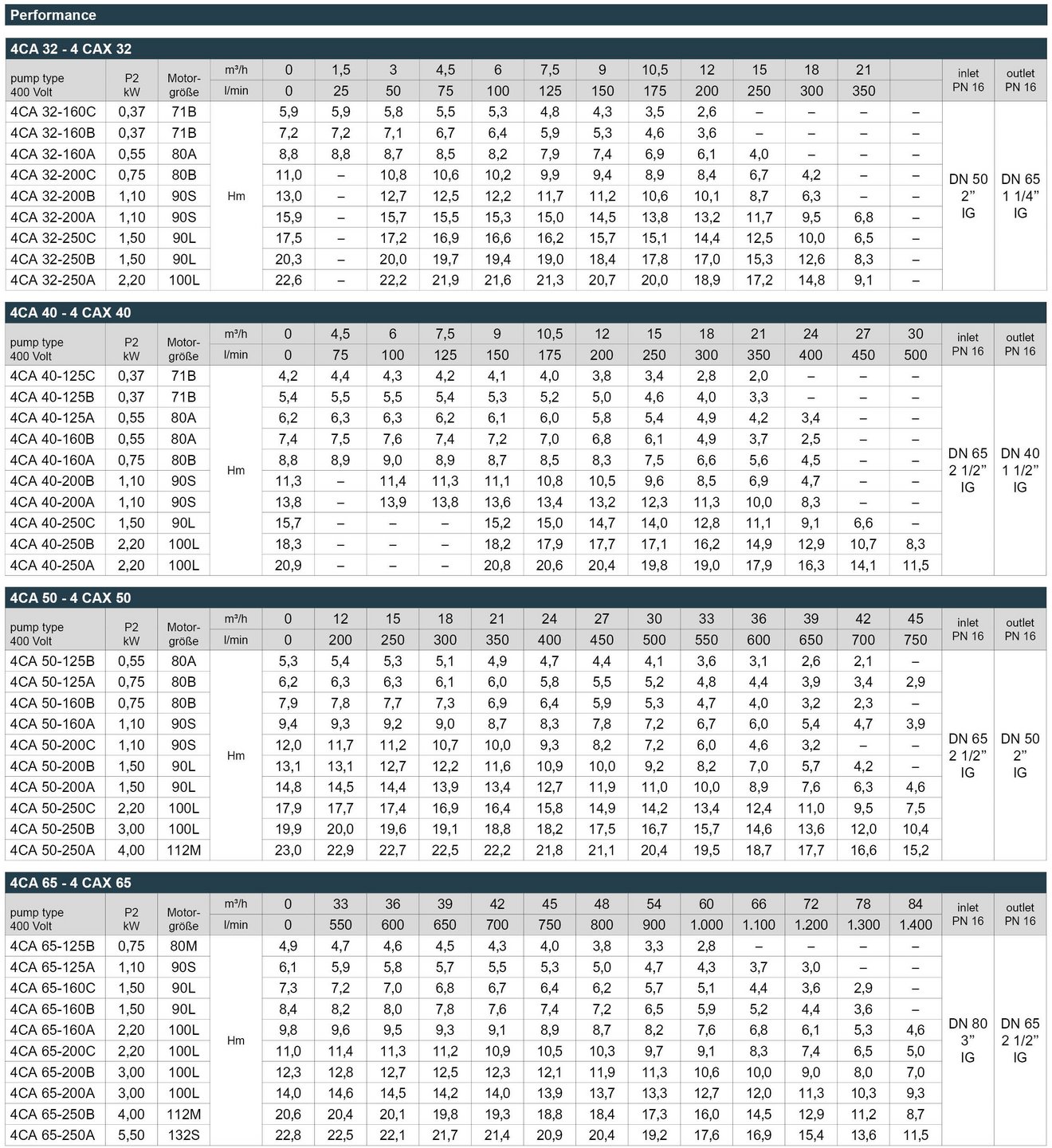

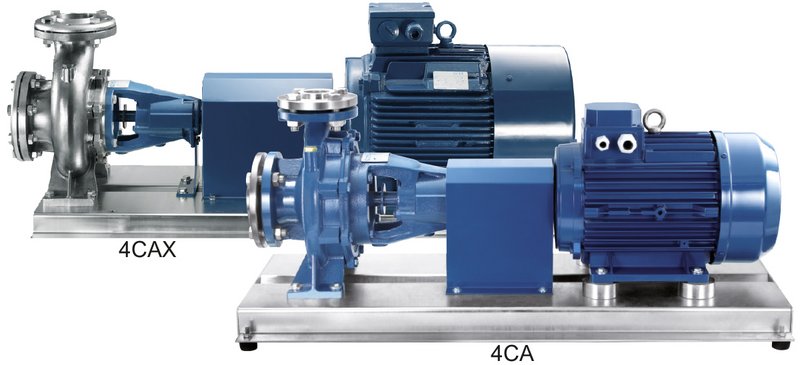

Standard centrifugal pump

1.450 rpm

4CA   - cast iron

4CAX - stainless steel

• Normal priming standard centrifugal pump according to EN 733 with axial suction and radial pressure connections

• mounted on base plate

• Pump body: 4CA - cast iron / 4CAX - stainless steel AISI 316

• Impeller: 4CA - cast iron / 4CAX - stainless steel AISI 316

• Flange: 4CA - DIN 2566 galvanised / 4CAX - DIN 2566 stainless steel

• Mechanical seal: carbon-ceramic-NBR

  with gland seal at extra charge

• Max. water temperature: -10°…+90°C

• Motor 1.450 rpm:

  up to 4,0 kW: 3~ 230 VΔ/400 VY - 50 Hz

  from 5,5 kW: 3~ 400 VΔ/690 VY - 50 Hz

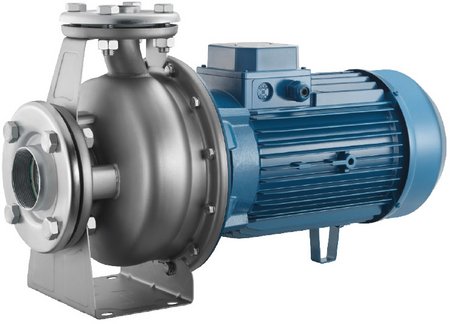

Stainless steel standard centrifugal pump

• normal priming standard pump according to EN 733 with axial suction and radial pressure connections

• Pump body: stainless steel AISI 304

• Impeller: stainless steel AISI 304

• Mechanical seal: carbon-ceramic-NBR

• Max. Water temperature: -10°…+90°C

• Motor three-phase current:

  up to 4,0 kW: 3~ 230 VΔ/400 VY - 50 Hz

  from 5,5 kW: 3~ 400 VΔ/690 VY - 50 Hz
