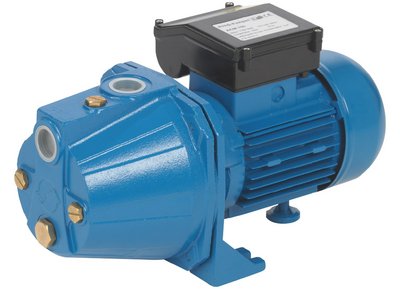

ACM 100
Self priming cast iron centrifugal pump
with one brass impeller
Pump body: cast iron
Impeller: brass
Mechanical seal: carbon-ceramic-NBR
Max. suction height: 8 m
Connection: 1"

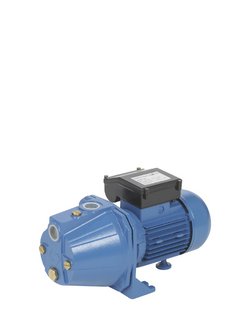

ACM 100
single pump

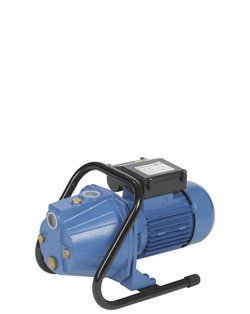

ACM 100
with handle and
switch on/off

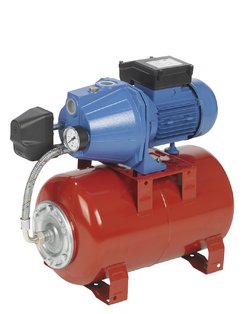

Pump station
ACM 100
with red painted
horizontal vessel

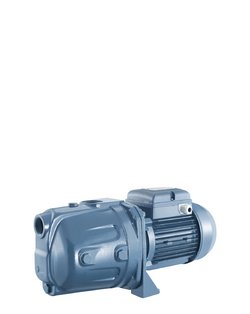

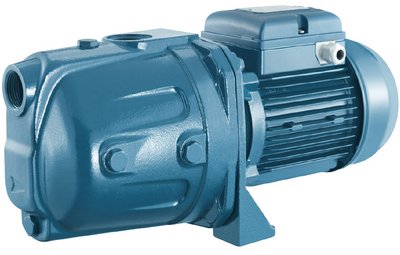

CAM 100 - CAM 140 - CAM 200 - CAM 300
Self priming cast iron centrifugal pump
with one brass impeller
Pump body: cast iron
Impeller: brass
Mechanical seal: carbon-ceramic-NBR
Max. suction height: 8-9 m
CAM 100
CAM 140
CAM 200
CAM 300
single pump

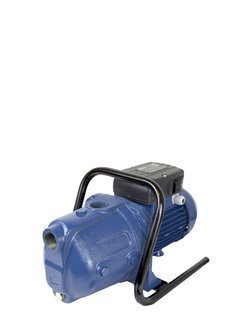

CAM 100
with handle and
switch on/off

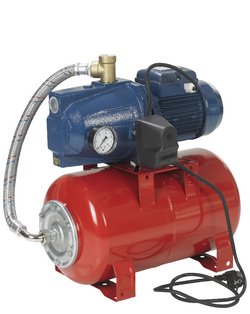

Pump station
CAM 100 - CAM 140
CAM 200 - CAM 300
with red painted
horizontal vessel
Pump station
CAM 100
with red painted
8 l cylinder-
vessel

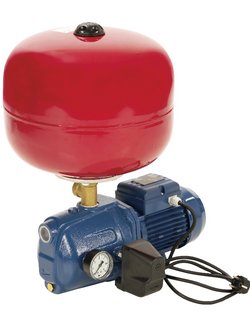

Pump station
CAM 100
with red painted
24 l sphere-
vessel
Pump CAM 100 - CAM 140 - CAM 200 with frequency inverter
The integrated Epic frequency control for electronic speed control and constant pressure maintenance:
Pressure-dependent switch-on and switch-off, as well as automatic adjustment of the pump performance to changing operating conditions.
Dry-running protection, soft start and soft stop
Protection against overvoltage

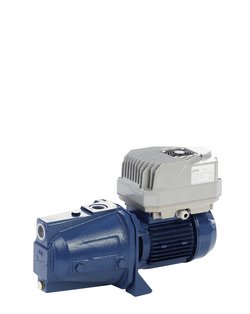

CAM 100 - CAM 140
CAM 200
with Epic frequency inverter
single pump

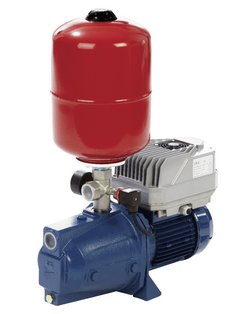

Pump station
CAM 100 - CAM 140
CAM 200
with Epic frequency inverter
red painted vessel

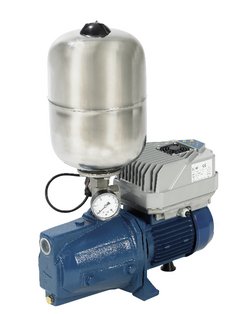

Pump station
CAM 100 - CAM 140
CAM 200
with Epic frequency inverter
stainless steel vessel

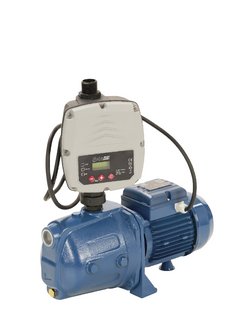

Pump CAM 100 - CAM 140 with Brio Top pump control
Pump CAM with electronic pump control Brio Top for automatic start and stop of the pump:
The pressure control starts the pump when the set switch-on pressure (Pmin) is reached and stops it when water flow ends.
Dry-running protection with automatic reset
Overvoltage protection
Easy adjustment in the display

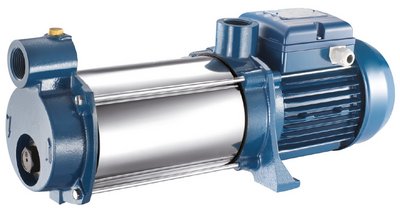

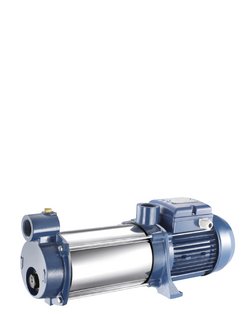

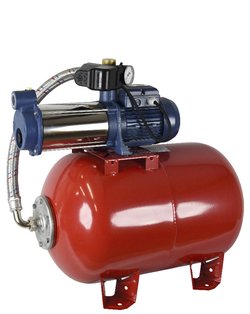

MPA
Self priming multistage centrifugal pumps
made of cast iron and stainless steel
Pump body: cast iron
Casing: stainless steel AISI 304
Impellers: Noryl
Diffusers: Noryl
Mechanical seal: carbon-ceramic-NBR
Max. suction height: 8 m
Connection: 1"

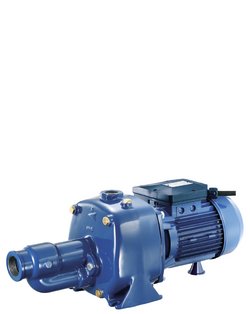

CAB
Self priming cast iron centrifugal pump
High performance pump with two brass impellers
Pump body: cast iron
Impellers: brass
Mechanical seal: carbon-ceramic-NBR
Max. suction height: 8-9 m
The suction pipe must have a diameter at least equal to that of the pump suction connection.
For suction heights of 4 m, use a pipe with a larger diameter.

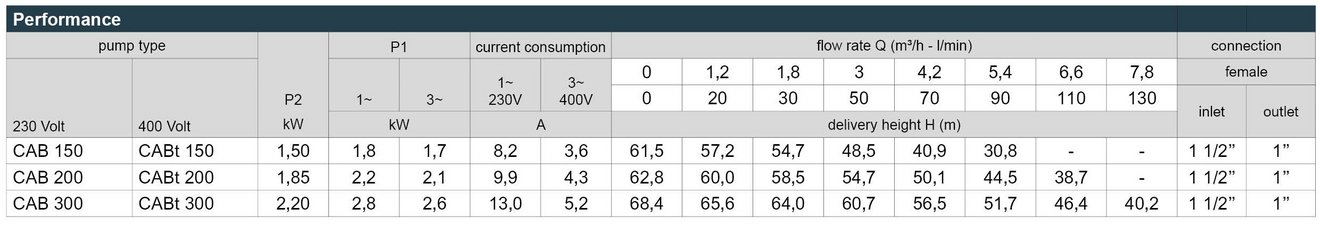

CAB 150
CAB 200
CAB 300
single pump

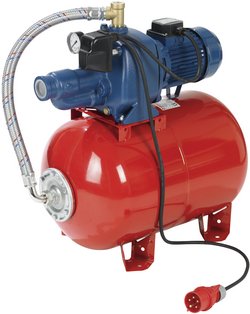

Pump station
CAB 150
CAB 200
CAB 300
with red painted
horizontal vessel
Pump CAB with frequency inverter
The integrated Epic frequency control for electronic speed control and constant pressure maintenance:
Pressure-dependent switch-on and switch-off, as well as automatic adjustment of the pump performance to changing operating conditions.
Dry-running protection, soft start and soft stop
Protection against overvoltage

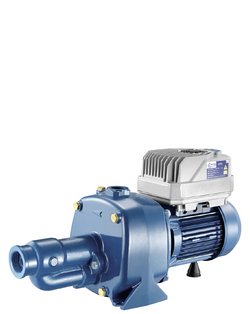

CAB 150
CAB 200
with Epic frequency inverter
single pump

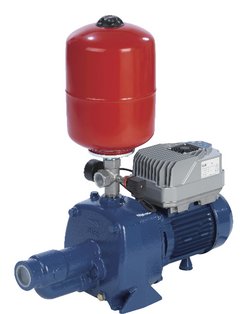

Pump station
CAB 150
CAB 200
with Epic frequency inverter
red painted vessel

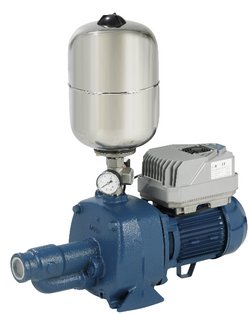

Pump station
CAB 150
CAB 200
with Epic frequency inverter
stainless steel vessel

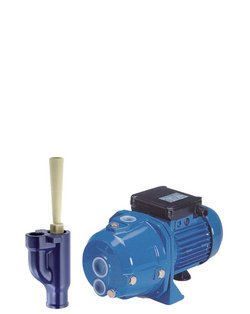

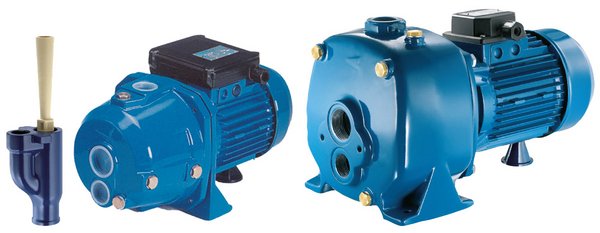

AP
Self priming cast iron centrifugal pump
for deep suction
Pump body: cast iron
Impeller: brass
Mechanical seal: carbon-ceramic-NBR
The injector is installed in a well with a minimum diameter of 100 mm.
Two pipes, 1‘ and 1 ¼’, are laid between the injector and the pump.
A 1" foot valve must be installed below the injector.
