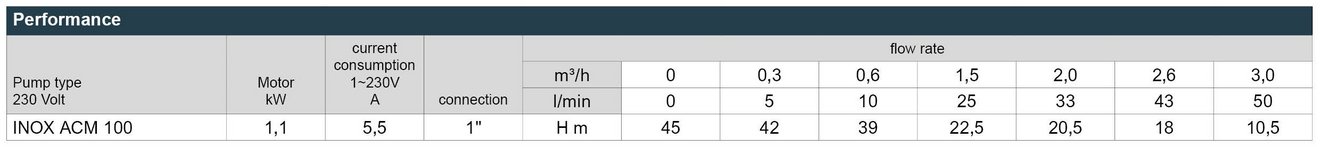

INOX ACM 100
Stainless steel self priming centrifugal pump
with one impeller made of brass
Pump body: stainless steel
Impeller: brass
Mechanical seal: carbon-ceramic-NBR
Max. suction height: 8 m
Connection: 1"

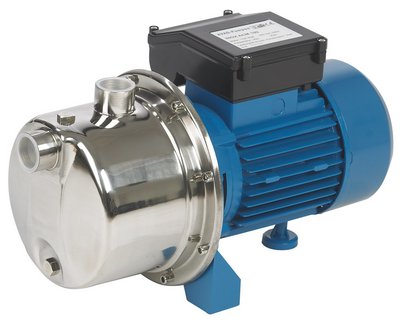

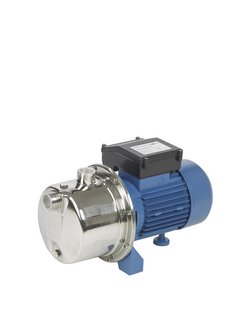

INOX ACM 100
single pump
INOX ACM 100
with handle and
switch on/off

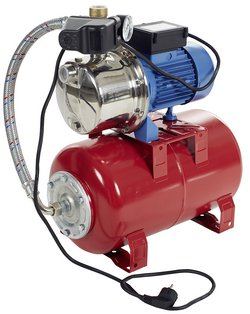

Pump station
INOX ACM 100
with horizontal
red painted vessel
Pump station
INOX ACM 100
with horizontal
stainless steel vessel

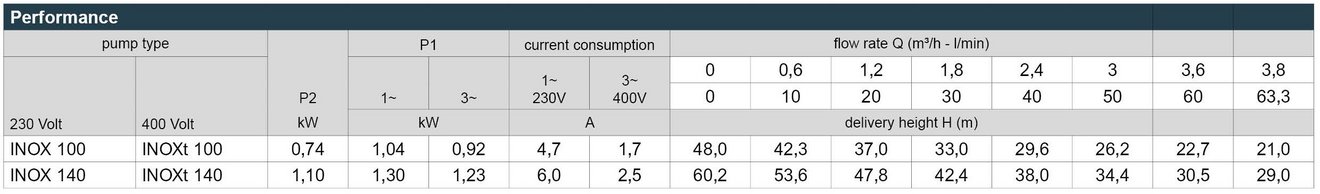

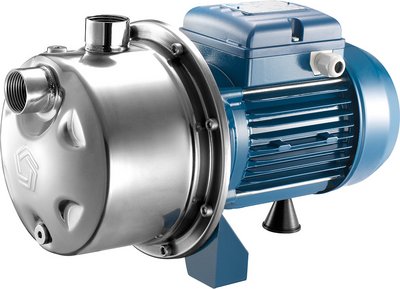

INOX 100 - INOX 140
Stainless steel self priming centrifugal pump
with one impeller made of stainless steel
Pump body: stainless steel
Impeller: stainless steel
Mechanical seal: carbon-ceramic-NBR
Max. suction height: 8-9 m
Connection: 1"

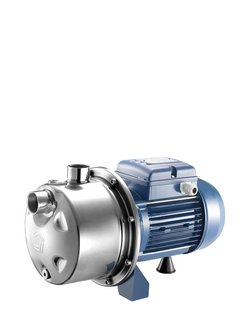

INOX 100 - INOX 140
single pump

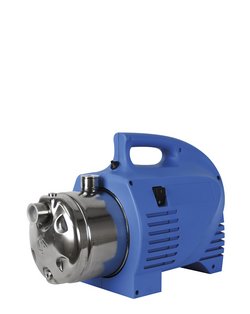

INOX 100
with handle and
switch on/off

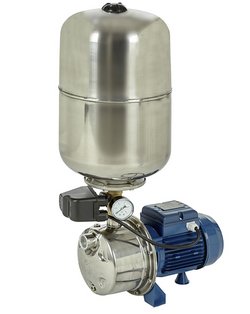

Pump station
INOX 100
with vessel stainless steel
cylinder

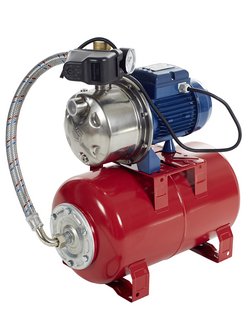

Pump station
INOX 100 - INOX 140
with horizontal
red painted vessel

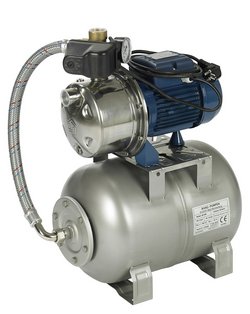

Pump station
INOX 100 - INOX 140
with horizontal
stainless steel vessel

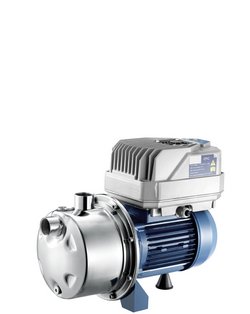

Pump INOX 100 - INOX 140 with frequency converter
The integrated Epic frequency control for electronic speed control and constant pressure maintenance:
Pressure-dependent switch-on and switch-off, as well as automatic adjustment of the pump performance to changing operating conditions.
Dry-running protection, soft start and soft stop
Protection against overvoltage
INOX 100 - INOX 140
with Epic frequency inverter
single pump

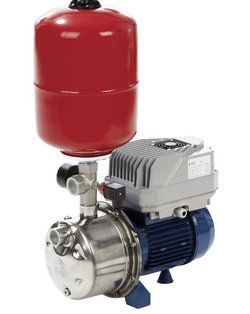

Pump station
INOX 100 - INOX 140
with Epic frequency inverter
red painted vessel
Pump station
INOX 100 - INOX 140
with Epic frequency inverter
stainless steel vessel

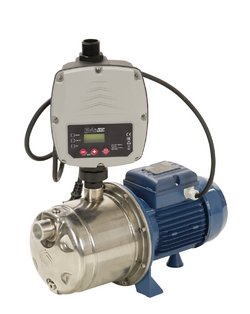

Pump INOX 100 - INOX 140 with pump control Brio Top
Pump INOX with electronic pump control Brio Top for automatic start and stop of the pump:
The pressure control starts the pump when the set switch-on pressure (Pmin) is reached and stops it when water flow ends.
Dry-running protection with automatic reset
Overvoltage protection
Easy adjustment in the display

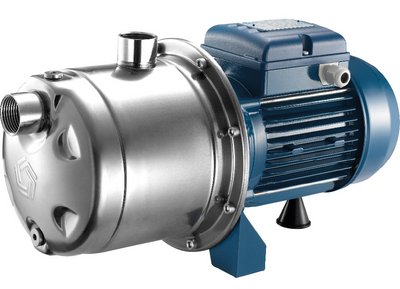

MPX 120/5
Stainless steel self priming multistage centrifugal pump
Pump body: stainless steel
5 impellers: Noryl
Diffusers: Noryl
Mechanical seal: carbon-ceramic-NBR
Max. suction height: 8 m
Connection: 1"
MPX 120/5
single pump
Pump station
MPX 120/5
with red painted
horizontal vessel

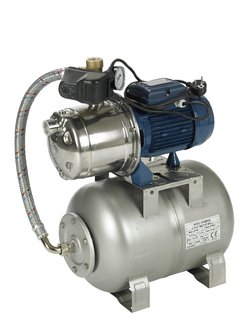

Pump station
MPX 120/5
with horizontal
stainless steel vessel
Pump MPX 120/5 with frequency inverter
The integrated Epic frequency control for electronic speed control and constant pressure maintenance:
Pressure-dependent switch-on and switch-off, as well as automatic adjustment of the pump performance to changing operating conditions.
Dry-running protection, soft start and soft stop
Protection against overvoltage

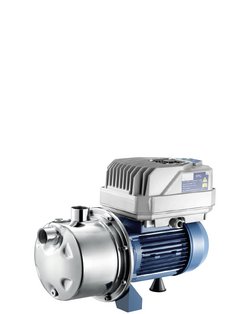

MPX 120/5
with Epic frequency inverter
single pump

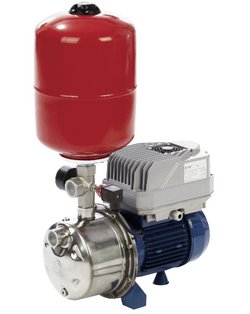

Pump station
MPX 120/5
with Epic frequency inverter
red painted vessel
Pump station
MPX 120/5
mit Epic frequency inverter
stainless steel vessel

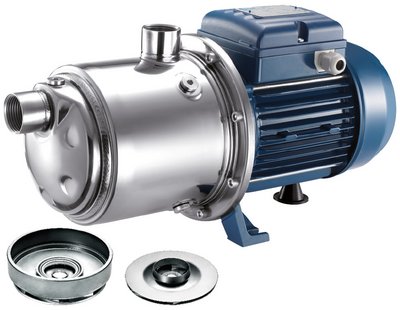

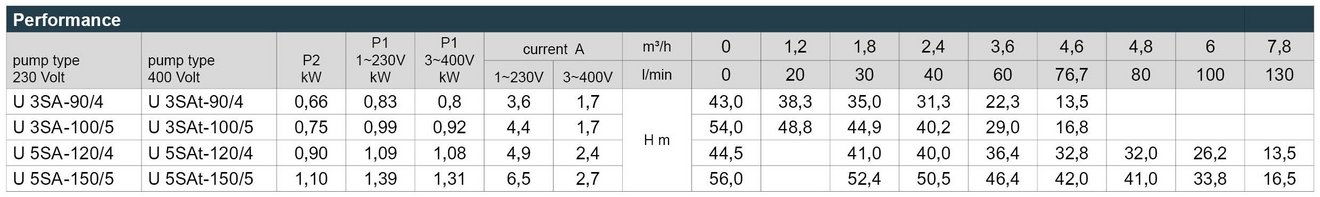

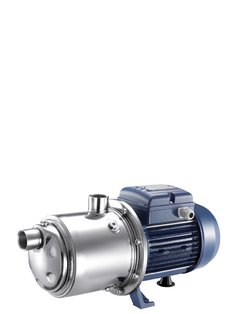

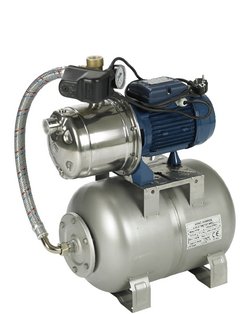

ULTRA SA
Stainless steel self priming multistage centrifugal pump
parts in contact with water are entirely made of stainless steel:
Pump body: stainless steel AISI 304
Impellers: stainless steel AISI 304
Diffusers: stainless steel AISI 304
Mechanical seal: carbon-ceramic-EPDM
Max. suction height: 8 m
Connection: 1"

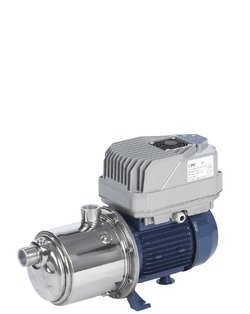

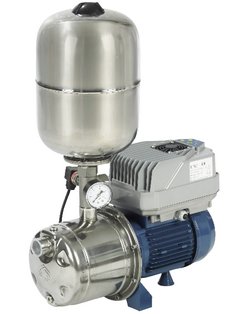

Pump Ultra SA with frequency inverter
The integrated Epic frequency control for electronic speed control and constant pressure maintenance:
Pressure-dependent switch-on and switch-off, as well as automatic adjustment of the pump performance to changing operating conditions
Dry-running protection, soft start and soft stop
Protection against overvoltage
