Wet-running circulation pumps
NMT Mini Pro and NMT Smart electronic high-efficiency pump for heating, air conditioning, cooling and ventilation.
The speed adjustment is performed electronically. The pump determines the pressure and flow rate and adjusts its speed according to the set operating mode.
Operating modes:
automatic mode
manual setting: proportional pressure, constant pressure, constant speed, night mode

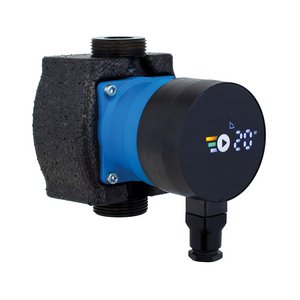

Circulation pump NMT Mini Pro 20/40
|
Motor
|
17 Watt
|
|
Max. flow rate
|
3,0 m³/h
|
|
Max. head
|
4,3 m
|
|
Pump connection
|
1 1/4"
|
|
Connection fitting
|
3/4"
|
|
Length
|
130 mm
|
Circulation pump NMT Mini Pro 25/40
|
Motor
|
17 Watt
|
|
Max. flow rate
|
3,0 m³/h
|
|
Max. head
|
4,3 m
|
|
Pump connection
|
1 1/2"
|
|
Connection fitting
|
1"
|
|
Length
|
130 mm
|
Circulation pump NMT Mini Pro 25/60
|
Motor
|
35 Watt
|
|
Max. flow rate
|
4,0 m³/h
|
|
Max. head
|
6,1 m
|
|
Pump connection
|
1 1/2"
|
|
Connection fitting
|
1"
|
|
Length
|
180 mm
|
Circulation pump NMT Mini Pro 32/60
|
Motor
|
35 Watt
|
|
Max. flow rate
|
4,0 m³/h
|
|
Max. head
|
6,1 m
|
|
Pump connection
|
2"
|
|
Connection fitting
|
1 1/4"
|
|
Length
|
180 mm
|
Circulation pump NMT Mini Pro 32/80
|
Motor
|
50 Watt
|
|
Max. flow rate
|
4,4 m³/h
|
|
Max. head
|
8,2 m
|
|
Pump connection
|
2"
|
|
Connection fitting
|
1 1/4"
|
|
Length
|
180 mm
|

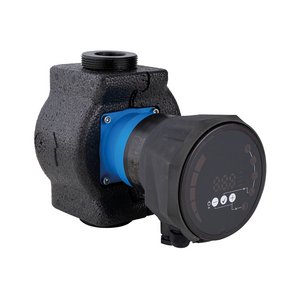

Circulation pump NMT Smart II 25/40
|
Motor
|
70 Watt
|
|
Max. flow rate
|
8,0 m³/h
|
|
Max. head
|
4,1 m
|
|
Pump connection
|
1 1/2"
|
|
Connection fitting
|
1"
|
|
Length
|
180 mm
|
Circulation pump NMT Smart II 32/60
|
Motor
|
100 Watt
|
|
Max. flow rate
|
10,3 m³/h
|
|
Max. head
|
6,3 m
|
|
Pump connection
|
2"
|
|
Connection fitting
|
1 1/4"
|
|
Length
|
180 mm
|

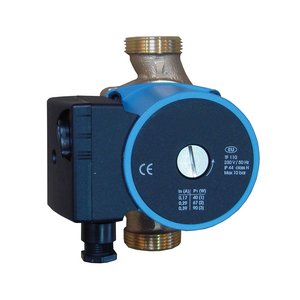

The SAN drinking water circulation pump is a three-stage circulation pump (wet runner) with a bronze housing.
Robust construction
Drinking water circulation pump SAN
|
Motor
|
75 Watt
|
|
Max. flow rate
|
3 m³/h
|
|
Max. head
|
4 m
|
|
Pump connection
|
1 1/2"
|
|
Connection fitting
|
1"
|
|
Length
|
130 mm
|
