Coolant pumps are suitable for pumping: liquids such as water, cooling emulsion, drilling and cutting oil, without abrasive components, no aggressive liquids.
The pumps may only be used vertically and are suitable for permanent operation.
The coolant pumps are mounted on a container, which dimensions must be suitable for the pump capacity, mounted about 4–5 cm from the bottom.
There should be about 3-4 cm of space between the coolant and the motor flange. In case of dirty liquids, the container should have a chamber in which the sludge can settle down
before being sucked in by the pump.

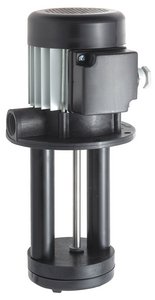

Coolant pump PA 70
|
Motor
|
0,12 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
65 l/min
|
|
Max. head
|
4 m
|
|
Immersion depths
|
85 - 300 mm
|
Coolant pump PA 100 B
|
Motor
|
0,37 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
100 l/min
|
|
Max. head
|
8 m
|
|
Immersion depths
|
150 - 200 mm
|

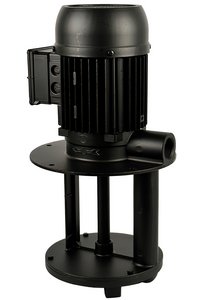

Coolant pump PA 240 B
|
Motor
|
0,90 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
240 l/min
|
|
Max. head
|
16 m
|
|
Immersion depths
|
200 - 250 mm
|
Coolant pump PA-B 48
brass body
|
Motor
|
0,55 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
48 l/min
|
|
Max. head
|
35 m
|
|
Immersion depths
|
195 mm
|
