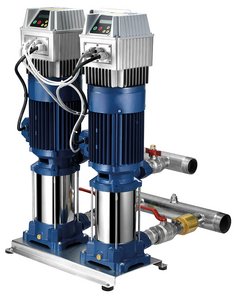

Pressure booster system with 2 or 3 Ultra SV pumps and IPFC frequency control
The pumps are arranged in parallel on a base plate and are complete with:
Suction and pressure pipe distributor
Ball valves on suction and pressure side
Check valves on the suction side
Electronic frequency control IFPC with pressure sensor
2 pumps Ultra U7SV300/6t
with 2 IPFC 306
|
Motor
|
2 x 2,2 kW
|
|
Max. flow rate
|
19,2 m³/h
|
|
Max. head
|
70,6 m
|
3 pumps Ultra U7SV300/6t
with 3 IPFC 306
|
Motor
|
3 x 2,2 kW
|
|
Max. flow rate
|
28,8 m³/h
|
|
Max. head
|
70,6 m
|

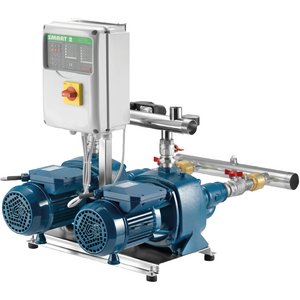

Pressure booster system with 2 CAB series pumps and pressure switch control
The pumps are arranged in parallel on a base plate and are complete with:
Suction and pressure pipe distributor
Ball valves on suction and pressure side
Check valves on the suction side
Pressure switch, pressure gauge
The pumps are switched on and off depending of the pressure. By installing several smaller pumps, the system constantly adapts to consumption. In the event of a malfunction, the system automatically switches to the next pump. A float switch, probes or liquid regolator can be connected to the control system as a dry-running protection.
