PTO-pump
01 1/2 RA-M5
|
Tractor power
|
3,7 kW
|
|
Max. free passage
|
9 mm
|
|
Max. flow rate
|
500 l/min
|
|
Max. head
|
32,5 m
|
PTO-pump
02 RA-M5
|
Tractor power
|
4,8 kW
|
|
Max. free passage
|
14 mm
|
|
Max. flow rate
|
700 l/min
|
|
Max. head
|
41 m
|
PTO-pump
02 1/2 RA-M5
|
Tractor power
|
7,0 kW
|
|
Max. free passage
|
20 mm
|
|
Max. flow rate
|
800 l/min
|
|
Max. head
|
38 m
|
PTO-pump
03 RAS-M5
|
Tractor power
|
10,0 kW
|
|
Max. free passage
|
24 mm
|
|
Max. flow rate
|
1350 l/min
|
|
Max. head
|
40 m
|
PTO-pump
03 RA-Z-M60N
|
Tractor power
|
11,5 kW
|
|
Max. free passage
|
14 mm
|
|
Max. flow rate
|
1000 l/min
|
|
Max. head
|
60 m
|
PTO-pump
03 RA-MF6
|
Tractor power
|
12,5 kW
|
|
Max. free passage
|
24 mm
|
|
Max. flow rate
|
1800 l/min
|
|
Max. head
|
45 m
|
PTO-pump
04 RA-VS1
|
Tractor power
|
17,7 kW
|
|
Max. free passage
|
39 mm
|
|
Max. flow rate
|
3100 l/min
|
|
Max. head
|
36 m
|

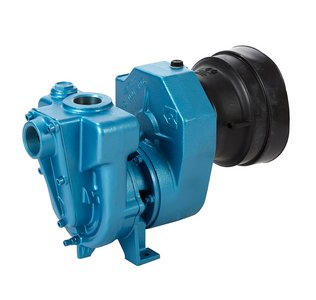

PTO-pump
0RA-C10-MF6
|
Tractor power
|
17,0 kW
|
|
Impeller
|
closed
|
|
Max. flow rate
|
600 l/min
|
|
Max. head
|
110 m
|
Powerful self-priming high-pressure PTO pump for direct connection to tractors and cultivators,
with safety chain for stable attachment.
The pump body is made of cast iron, with internal rollers.
Ideal for watering and water transfer.
The pump can rotate in both directions (except for model MLI 25 with built-in control valve).

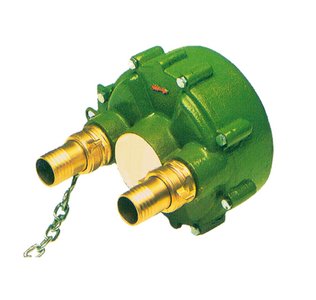

PTO pump MLI25
|
Tractor power
|
5,5 PS
|
|
Max. flow rate
|
180 l/min
|
|
Max. head
|
25 bar
|
|
with
|
regulating valve
|

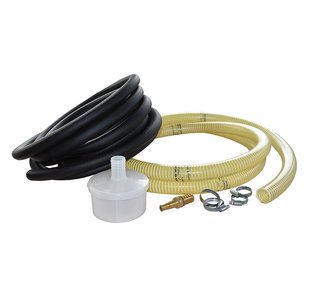

Hose set
for ML20, MLI25
|
Consisting of:
|
|
3 m suction hose 30 mm
|
|
7 m pressure hose 19 mm
|
|
Plastic suction basket
|
|
Brass nozzle
|
|
Hose connection
|
