Multi-stage high-performance submersible pump
suitable for vertical and horizontal installation in cisterns and rainwater collection tanks
for clear and clean water, irrigation, watering, water supply
in homes or gardens and industrial use.
body: stainless steel AISI 304
impellers and diffusers: plastic
without incorporated check valve
Pump external diameter: 131 mm

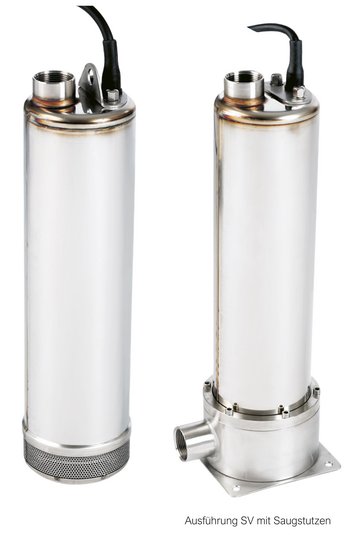

The SV submersible pump is equipped with a lower suction connection for installation
with a float switch.
Pumps are available with 230 Volt or 400 Volt motors.
The 230 Volt submersible pumps are supplied with an external capacitor.
We recommend using the DPC switch box to install the capacitor.
The pumps are delivered with 15 m cable. Except for the SV version with a short
cable end, which can be extended on request using a heat-shrink sleeve at an additional cost.
