for wells 3"

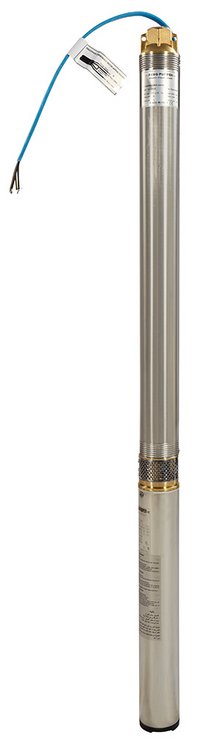

Multi-stage high-performance deep well submersible pump 3" external diameter 74 mm
for vertical installation in drilled wells
pump body stainless steel AISI 304
impellers: Noryl
diffusors: Noryl
check valve incoporated
Suitable for pumping clear and clean water for irrigation, watering and water supply
in homes or gardens, and industrial use.
There are two different types:
S3 45 to 2,7 m³/h
S3 70 to 4,2 m²/h
Pumps are available with 230 Volt or 400 Volt motors.
The 230 Volt submersible pumps are supplied with an external capacitor.
We recommend using the DPC switch box to install the capacitor.
The pumps are delivered with a short cable end, which can be extended on request
using a heat-shrink sleeve at an additional cost.
| Pump type | Motor | m³/h | 0,9 | 1,8 | 2,7 | 3,6 | 4,2 |
|---|---|---|---|---|---|---|---|
| S3 45-15 | 0,37 kW | m | 39 | 28 | 7 | ||
| S3 45-23 | 0,55 kW | m | 61 | 43 | 13 | ||
| S3 45-30 | 0,75 kW | m | 80 | 57 | 17 |
