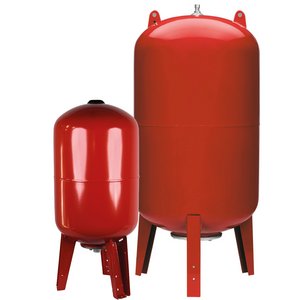

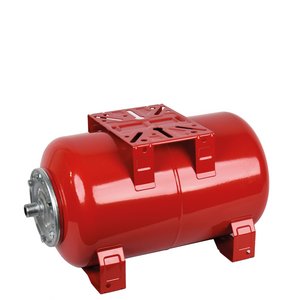

Membrane vessels - painted version
Diaphragm pressure vessels for water supply systems with CE marking
Membrane: Material butyl
Temperature range: -10°C to +99°C (8-750 l) -10°C to +50°C (1,000 l)
Pre-pressure: 2 bar
Colour: RAL 3002
Diaphragm vessel
vertical
|
Dimensions
|
60 l, 100 l, 200 l, 300 l,
|
|
|
500 l, 750 l, 1.000 l
|

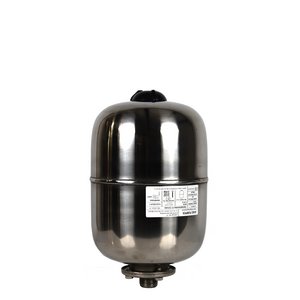

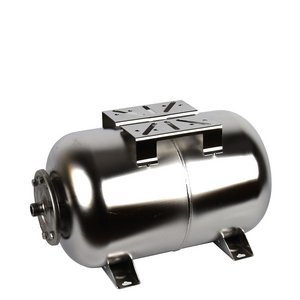

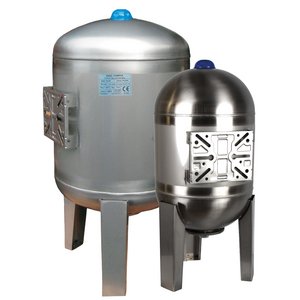

Membrane vessels - stainless steel version
Diaphragm pressure vessels for water supply systems with CE marking
Vessel: stainless steel AISI 304 - 1.4301
Membrane: material EPDM/Butyl
Temperature range: -10°C - +70°C
Pre-pressure: 2 bar

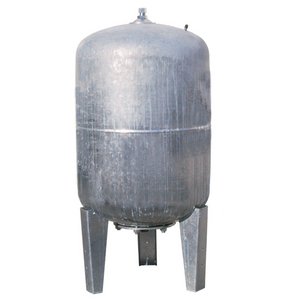

Membrane vessels - galvanised version
Diaphragm pressure vessel for water supply systems
Vessel: galvanised steel
Membrane: material Butyl
Temperature range: -10°C - +99°C
Pre-pressure: 2 bar

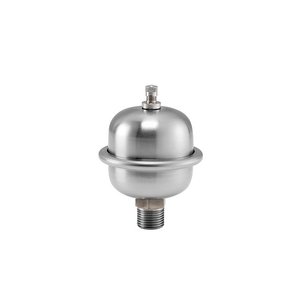

Water hammer arresters
Water hammer arresters to prevent pressure surges
Membrane: Material Butyl
Temperature range: -10°C - +99°C
Pre-pressure: 3,5 bar

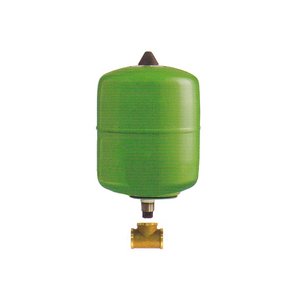

Membrane vessels for drinking water
Diaphragm pressure vessels for drinking water systems, pressure boosting systems and water heating systems
in accordance with DIN 4807 T5, flow-through with high-flow flow star, with DVGW approval
Membrane in accordance with KTW C W 270
Max. temperature: +70°C
Pre-pressure: 4 bar

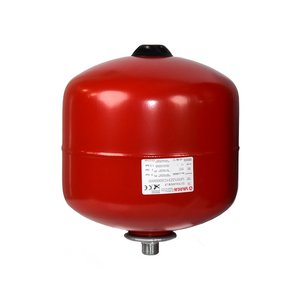

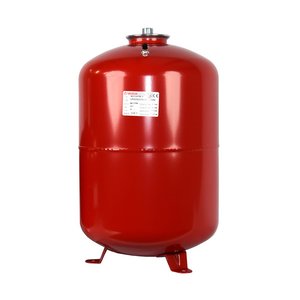

Membrane vessels heating
Diaphragm pressure expansion vessels for closed heating systems
Membrane: in accordance to DIN 4807 Part 3
Max. temperature: +99°C
Max. pressure: 3,5 bar
Pre-pressure: 1,5 bar
Membrane vessels solar
Diaphragm pressure expansion vessels for solar systems
Membrane: EPDM
Temperature range: -10°C - +130°C (Glycol max. +100°C)
Max. operating pressure: 8 bar
Pre-pressure: 2,5 bar
