Sewage tanks

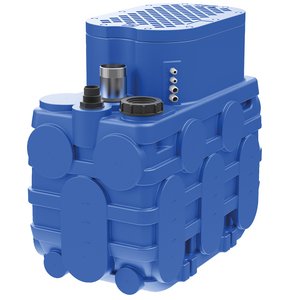

Wastewater lifting station - Bluebox - for above-ground installation

The factory-built lifting systems are an efficient and economical solution for collecting domestic wastewater and feeding it into the sewer system when the latter is at a higher level or when solids in the wastewater need to be crushed. The tank is made of rotationally moulded polyethylene with a usable capacity of 250 litres for installation with a pump. Thanks to its design features, the BlueBox is extremely versatile and particularly easy to install.

The lid and pipe penetrations are perfectly sealed. The BlueBox offers numerous options for connecting the inlet, outlet and ventilation pipes, allowing it to be adapted to any space.

Technical data:

• Net capacity: 250 l

• Dimensions: Height 660 mm - Width 500 mm - Length 900 mm

• Max. temperature : 40°C

• Contents of delivery:

  Walk-on installation cover

  Underwater coupling

  Ball check valve

  Mounting pipe and float switch

  2" outlet pipe

  Emergency drain outlet

  Cable entry

  1 seal for pipe Ø 110 mm

  1 seal for pipe Ø 75 mm

  1 seal for pipe Ø 50 mm

  Special bearing to shorten the float stroke

  Connection for inlet and vent can be used on either side

• Supplied without pump
