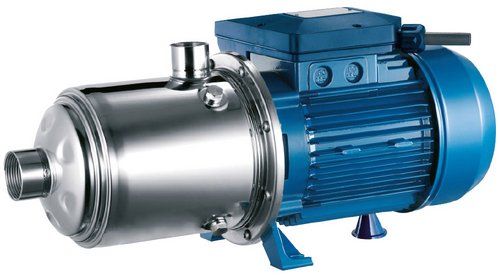

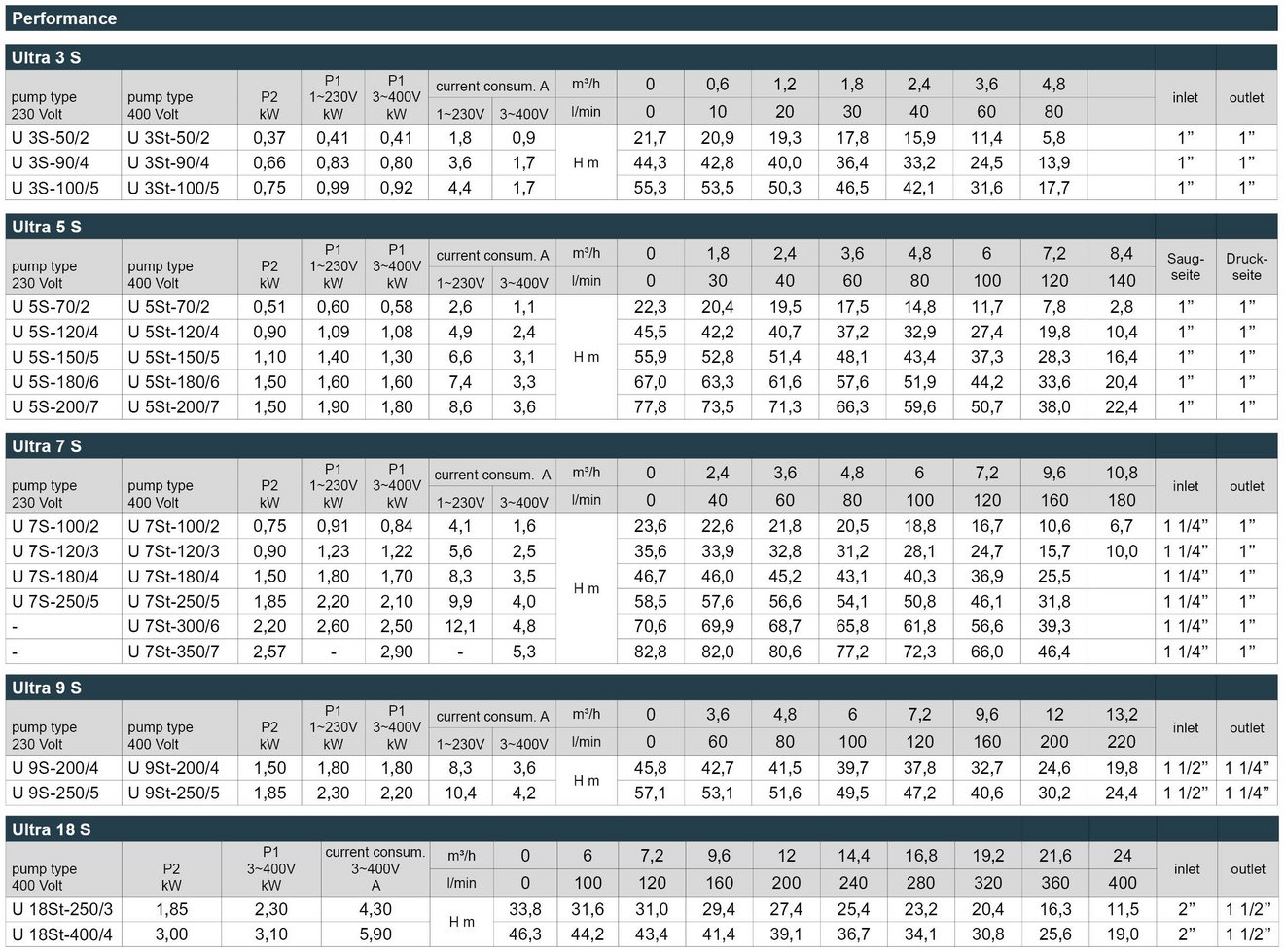

Ultra S
Stainless steel multistage centrifugal pump
Normal priming centrifugal pump
Pump body: stainless steel AISI 304
Flange: aluminium
Impellers: stainless steel AISI 304
Diffusers: stainless steel AISI 304
Mechanical seal up to 6 impellers: carbon-ceramic-EPDM
Mechanical seal from 7 impellers: graphite-silicon-EPDM
Max. water temperature: -15…+110°C
Motor:
Alternating current: 1~ 230 V - 50 Hz (with thermal protection)
Three-phase current: 3~ 230 V Δ/400 V Y - 50 Hz
Pump Ultra S with frequency inverter
The integrated Epic frequency control for electronic speed control and constant pressure maintenance:
Pressure-dependent switch-on and switch-off, as well as automatic adjustment of the pump performance to changing operating conditions.
Dry-running protection, soft start and soft stop
Protection against overvoltage

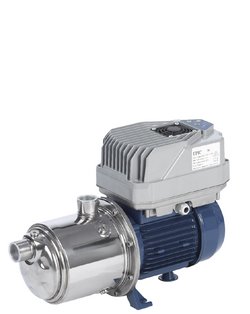

Ultra S
with Epic frequency inverter
single pump
Pump station

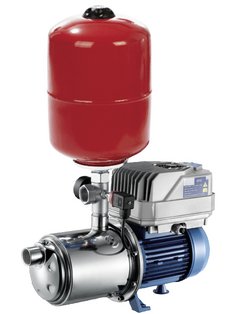

Ultra S
with Epic frequency inverter
red painted vessel
Pump station

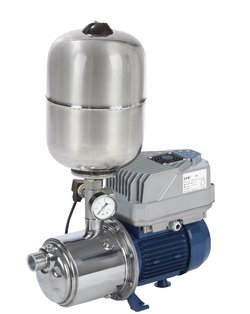

Ultra S
with Epic frequency inverter
stainless steel vessel

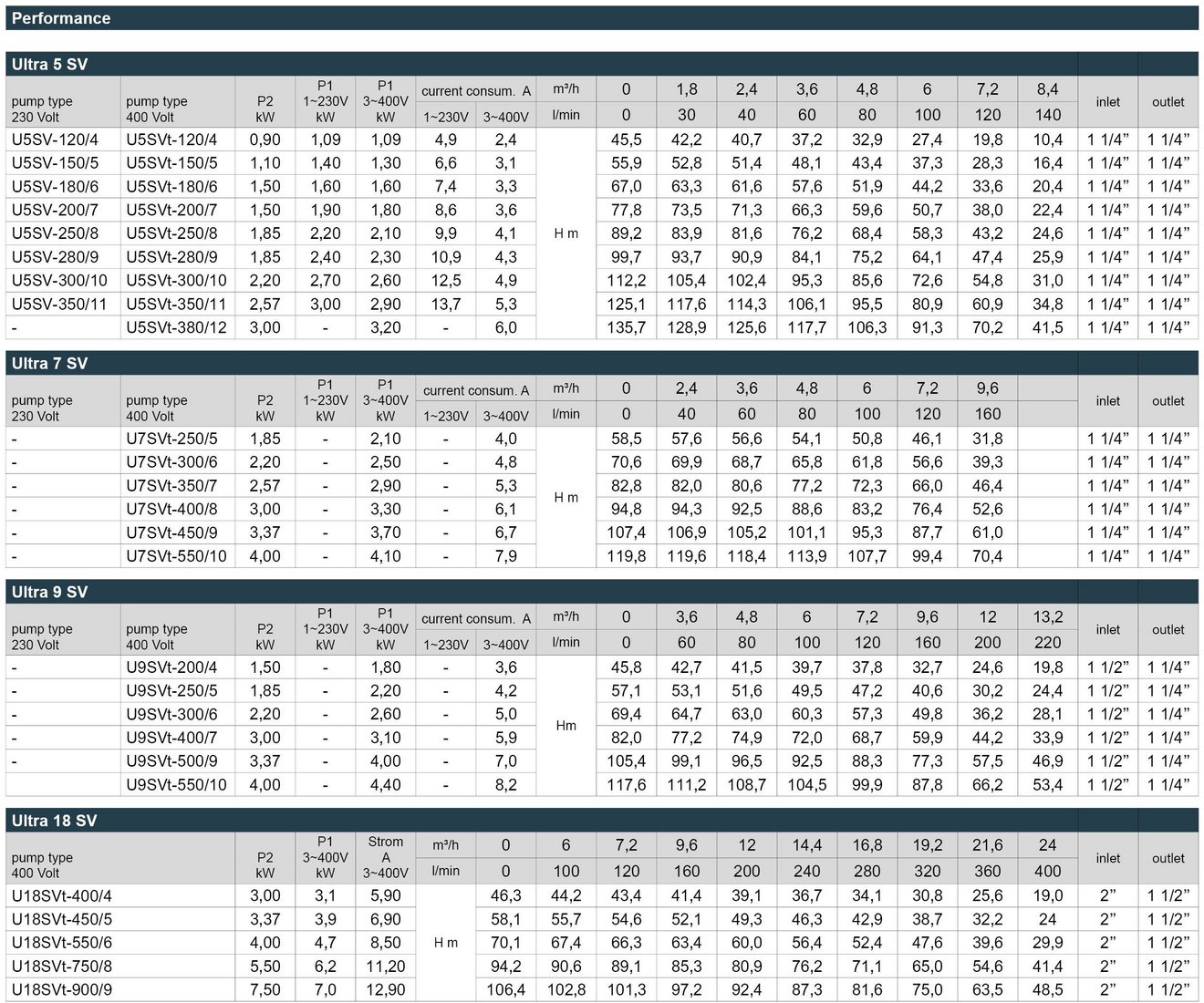

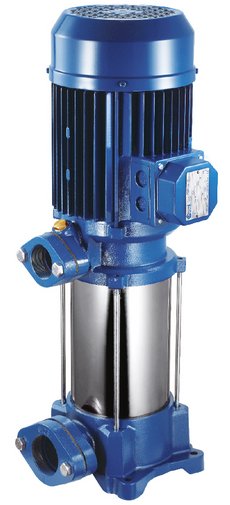

Ultra SV
Stainless steel multistage vertical
centrifugal pump
Normal priming centrifugal pump
Pump body: stainless steel AISI 304
Flange: cast iron
Impellers: stainless steel AISI 304
Diffusers: stainless steel AISI 304
Mechanical seal up to 6 impellers: carbon-ceramic-EPDM
Mechanical seal from 7 impellers: graphite-silicon-EPDM
Max. water temperature: -5…+90°C
Motor:
Alternating current: 1~ 230 V - 50 Hz (with thermal protection)
Three-phase current: up to 4,0 kW: 3~ 230 V Δ/400 V Y - 50 Hz
from 5,5 kW: 3~ 400 V Δ/690 V Y - 50 Hz

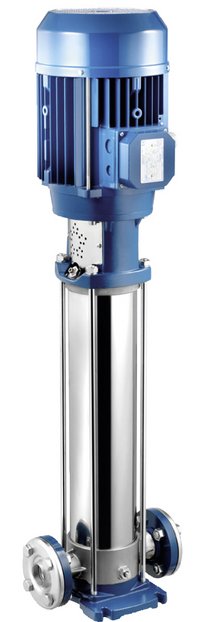

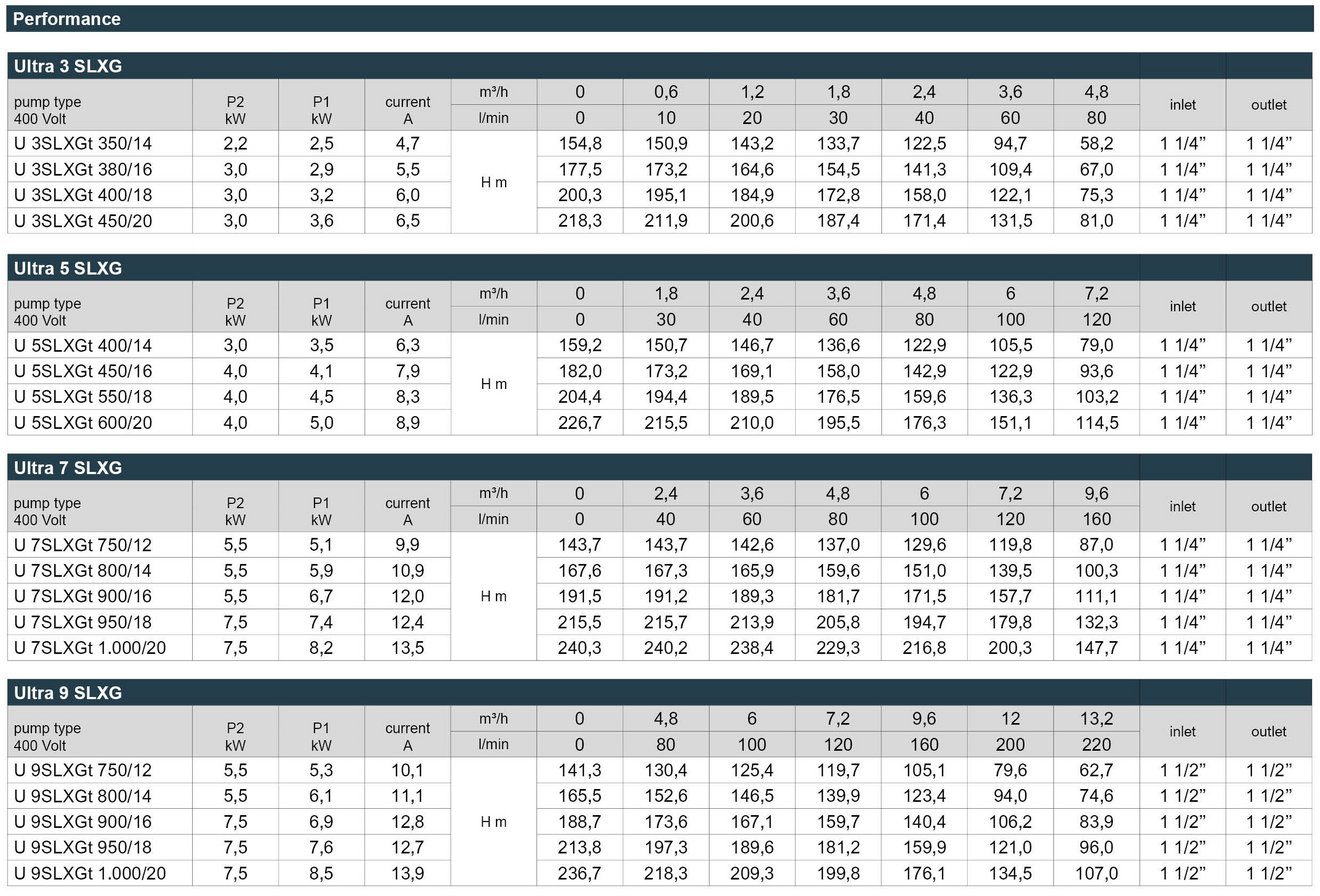

Ultra SLXG
Stainless steel multistage vertical
inline centrifugal pump
Normal priming centrifugal pump
with directly coupled three-phase motor
Pump body/Casing: stainless steel AISI 304
Flange: cast iron
Pump head: cast iron
Impellers: stainless steel AISI 304
Diffusers: stainless steel AISI 304
Mechanical seal: carbon-ceramic-EPDM
Max. water temperature: -15…+110°C
Motor:
Three-phase current
up to 4,0 kW: 3~ 230 VΔ/400 V Y - 50 Hz
from 4,4 kW: 3~ 400 VΔ/690 V Y - 50 Hz
