Wastewater pumps/sewage pumps are used to pump untreated wastewater and rainwater for municipal, industrial, commercial, and domestic use.
Submersible pumps are a closed unit consisting of a pump and motor. Due to their design, submersible pumps for sewage and rainwater are suitable for stationary wet installation in shafts.
For submersible installation with automatic coupling systems, the pumps are installed with a sliding tube.
The automatic coupling system facilitates maintenance, repair and replacement of the sewage pumps.

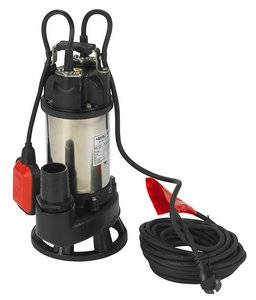

Submersible pump DSK 05
with grinder
|
Motor
|
0,40 kW
|
|
Motor voltage
|
230 Volt
|
|
Max. flow rate
|
14,4 m³/h
|
|
Max. head
|
8 m
|
Submersible pump DSK 20
with grinder
|
Motor
|
1,50 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
33 m³/h
|
|
Max. head
|
15 m
|

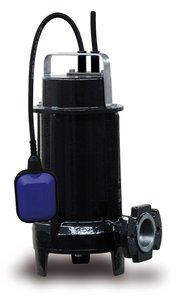

Submersible pump GRS 100
with grinder
|
Motor
|
0,90 kW
|
|
Motor voltage
|
230 V
|
|
Max. flow rate
|
14,4 m³/h
|
|
Max. head
|
20,3 m
|
Submersible pump GRE 200
with grinder
|
Motor
|
1,70 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
21,6 m³/h
|
|
Max. head
|
26,8 m
|

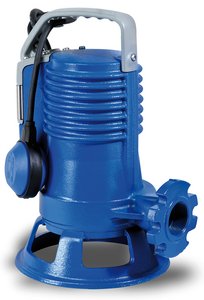

Submersible pump GR Blue Pro 100
with grinder
|
Motor
|
0,74 kW
|
|
Motor voltage
|
230 V
|
|
Max. flow rate
|
14,4 m³/h
|
|
Max. head
|
18 m
|
Submersible pump GR Blue Pro 200
with grinder
|
Motor
|
1,50 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
18 m³/h
|
|
Max. head
|
27 m
|

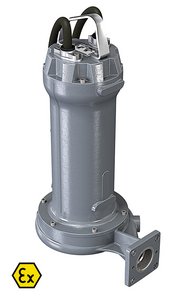

Submersible pump GRG-EX
Explosion- tested
with grinder
|
Motor
|
1,50 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
14,4 m³/h
|
|
Max. head
|
24,4 m
|

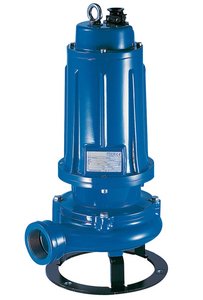

Submersible pump DTR
with grinder
|
Motor
|
2,2 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
18 m³/h
|
|
Max. head
|
26,1 m
|

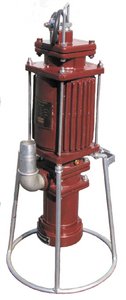

Submersible pump PK-X-40
with grinder and worm mechanism
|
Motor
|
1,50 kW
|
|
Motor voltage
|
400 V
|
|
Max. flow rate
|
2,4 m³/h
|
|
Max. head
|
50 m
|
Submersible pumps with an open multi-channel impeller and large ball passage (clear passage 55 x 50 mm), suitable for:
Circulation of industrial process wastewater
Municipal lifting stations
Drainage and lifting of sewage
Submersible pump DRG 550/2/80 BOFT
with open multi-channel impeller
|
Motor
|
4,0 kW
|
|
Voltage
|
400 V
|
|
Max. flow rate
|
115,2 m³/h
|
|
Max. head
|
18,6 m
|
Submersible pump DRG 750/2/80 BOFT
with open multi-channel impeller
|
Motor
|
5,5 kW
|
|
Voltage
|
400 V
|
|
Max. flow rate
|
144 m³/h
|
|
Max. head
|
23,4 m
|
Submersible pump DRG 1000/2/80 BOFT
with open multi-channel impeller
|
Motor
|
7,5 kW
|
|
Spannung
|
400 V
|
|
Max. flow rate
|
172,8 m³/h
|
|
Max. head
|
30,9 m
|
Submersible sewage pumps with channel impeller and cuttings system for solid waste water and shredding of long-fibrous components
municipal, industrial, and agricultural applications
waste water in water treatment and sewage treatment plants, and livestock facilities
Submersible pump CTG 300/4/80 AOET
with cutting system
|
Motor
|
2,2 kW
|
|
Voltage
|
400 V
|
|
Max. flow rate
|
115,2 m³/h
|
|
Max. head
|
14 m
|
